Cisco AIR-ANT5135DB-R N2 Aironet Articulated Dipole - Antenna - Wi-Fi - 3. AIR-ANT5135DB-R

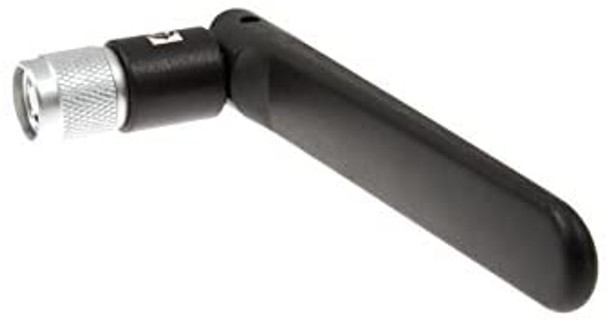

The antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio products using a reverse-polarity Neil Councilman connector (RP-TNC). The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle with detents at 45 and 90 degrees.


Label: 5 GHz 3.5 dBi Swivel Dipole Antenna
Status: N2
Product Description: Cisco Aironet Articulated Dipole - antenna
Product Type: Antenna
Dimensions (WxDxH): 1.5 cm 13.5 cm
Weight: 28 g
Colour: Black
Intended For: Wi-Fi
Aerial Placing / Mounting: Indoor
Compatibility: 802.11 a
Frequency Range: 5 GHz
Gain: 3.5 dBi
Directivity: Omni-directional
Designed For: Aironet 1242AG, 1242G, 1260 Series Access Point (Standalone)


General: Status: N2
Product Type: Antenna
Width: 1.5 cm
Height: 13.5 cm
Weight: 28 g
Enclosure Colour: Black
Aerial: Intended For: Wi-Fi
Aerial Placing / Mounting: Indoor
Compatibility: 802.11 a
Frequency Range: 5 GHz
Gain: 3.5 dBi
Directivity: Omni-directional
Horizontal Beamwidth: 360?
Vertical Beamwidth: 40?
Environmental Parameters: Min Operating Temperature: 0 ?C
Max Operating Temperature: 55 ?C
Compatibility Information: Designed For: Cisco Aironet 1242AG, 1242G, 1260 Series Access Point (Standalone)
