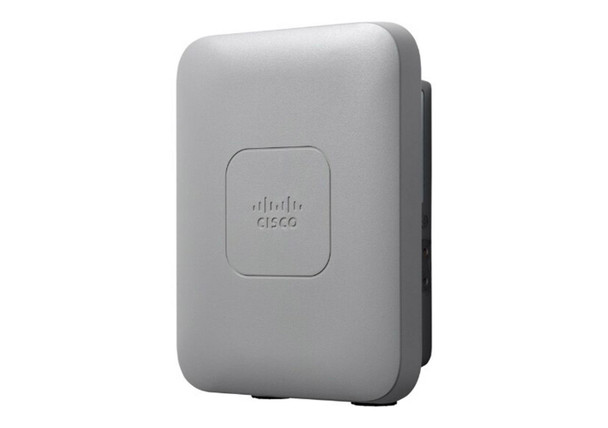

Cisco AIR-AP1542D-E-K9 Aironet 1540 1000 Mbit/S Grey AIR-AP1542D-E-K9

Cisco� Aironet� 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.

The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.

Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today�s bandwidth-hungry devices.

Antenna



Antenna features



Integrated antenna


Antenna gain level (max)



9 dBi


Antenna type



Internal


Antennas quantity



2


Design



Certification



UL60950 CAN/CSA-C22.2 No. 60950 IEC 60950 EN 60950 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 FCC RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 ICES-003 EN 301 489-1, -17


Internal



No


International Protection (IP) code



IP67


LED indicators



Y, Yes


Placement



Pole, Wall


Product colour



Grey


Reset button



Yes


Features



2.4 GHz



Yes


5 GHz



Yes


Channels quantity



21 channels


Ethernet LAN data rates



10, 100, 1000


Frequency band



2.412 - 2.472, 5.5 - 5.58, 5.66 - 5.7 GHz


Maximum data transfer rate



1000 Mbit/s


Maximum data transfer rate (5 GHz)



867 Mbit/s


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Transmitting power



25 dBmW


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating temperature (T-T)



-40 - 65 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



1.63 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


WAN connection



Ethernet (RJ-45)


Power



Power consumption (max)



13 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1.25 kg


Product Depth



15 cm


Product Height



6.1 cm


Product Width



20 cm


Security



MAC address filtering



Yes


Security algorithms



802.1x RADIUS, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, WPA, WPA2


VPN support



IPsec, L2TP


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
