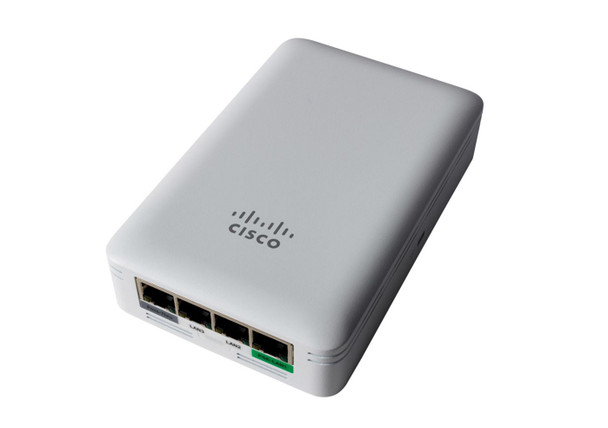

Cisco AIR-AP1815W-E-K9C Aironet 1815W 1000 Mbit/S AIR-AP1815W-E-K9C

The Cisco� Aironet� 1815w Access Point offers a compact, wall plate�mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.

Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.

y adhering to the 802.11ac Wave 2 standard, the 1815w provides a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

In recent years corporate users have increasingly preferred wireless access as their form of network connectivity, due to its convenience. With this shift, there is an expectation that wireless should not slow down users� day-to-day activities, but should enable a high-performance experience while allowing users to move about freely. The 1815w delivers industry-leading performance with highly secure and reliable wireless connections that provide a robust, mobile end-user experience.

Antenna



Antenna features



Integrated antenna


Antenna gain level (max)



3 dBi


Design



Cable lock slot



Yes


Cable lock slot type



Kensington


Certification



UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1


Internal



No


LED indicators



Y, Yes


Placement



Table, Wall


Product colour



Grey


Features



2.4 GHz



Yes


5 GHz



Yes


Channels quantity



29 channels


Cyclic Shift Diversity (CSD)



Yes


Dynamic Frequency Selection (DFS)



Yes


Ethernet LAN data rates



10, 100, 1000


Frequency band



2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz


Maximal-Ratio Combining (MRC)



Yes


Maximum data transfer rate



1000 Mbit/s


Maximum data transfer rate (5 GHz)



867 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3af


Number of users



400 user(s)


VLAN support



Yes


Wi-Fi Multimedia (WMM)/(WME)



Yes


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Non-operating altitude



0 - 4500 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-30 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.36 kg


Packaging content



Mounting kit



Yes


Number of products included



1 pc(s)


Performance



Built-in processor



Yes


Flash memory



256 MB


Internal memory



1024 MB


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


Power



Power consumption (max)



8.5 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.28 kg


Product Depth



14 cm


Product Height



3.15 cm


Product Width



8.9 cm


Security



MAC address filtering



Yes


Security algorithms



802.1x RADIUS, AES, EAP-FAST, EAP-SIM, EAP-TLS, EAP-TTLS, WPA, WPA2


Security features



Authentication Authorization Accounting (AAA)


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
