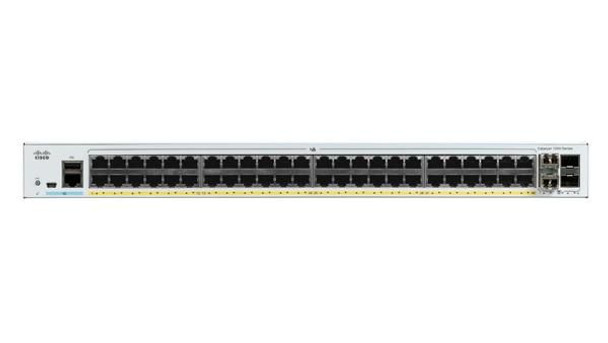

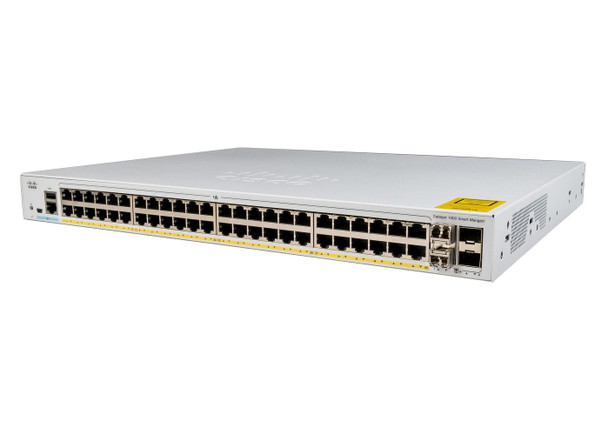

Cisco C1000-48T-4X-L 48T-4X-L Network Switch C1000-48T-4X-L

Cisco Catalyst 1000 Series switches provide enterprise-grade network access sized for small businesses. With a wide range of Power over Ethernet (PoE) and port combinations, these easy-to-manage switches provide the performance a modern small office needs.

Quiet and compact
The compact, fanless design means Catalyst 1000 switches can hide in plain sight in open-plan spaces.

Simplified management
Catalyst 1000 switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.

Enhanced security
With Catalyst 1000 switches' larger-scale access-control tables and additional security features, you can segment traffic for greater security.

Power over Ethernet
With a range of PoE options featuring Perpetual PoE, Catalyst 1000 switches make installing IoT devices as easy as plugging in cables.

The Catalyst 1000 Series switch platform provides a range of options to fulfill almost any small-business network�s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.

Intuitive software for monitoring your network
You can manage all your Cisco Catalyst IOS switches with Cisco Configuration Professional, a web-based application for monitoring and optimizing your devices and getting contextual support.

Why upgrade to Catalyst 1000 switches

Improved hardware
- Increased PoE budget

More advanced software options
- sFlow and IPFIX
- IPv6 First-Hop Security

Expanded ACL support
- Larger-scale access-control tables

Accelerate your success with services from Cisco Customer Experience

Confidently move to a secure, automated intent-based network with expert guidance, proven experience, best practices, and innovative tools.

Data transmission



Forwarding rate



77.38 Mpps


Jumbo frames



10240


Jumbo frames support



Yes


MAC address table



16000 entries


Number of static routes



16


Static route



Yes


Switching capacity



176 Gbit/s


Design



LED indicators



Y, Yes


Product colour



Grey


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Configuring Location Settings (CLI)



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Traffic classification



Yes


Web-based management



Yes


Multicast features



IPv4 multicast entries



1024


IPv6 multicast entries



1024


Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



256


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4500 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



5.14 kg


Performance



Built-in processor



Yes


Flash memory



256 MB


Internal memory



512 MB


Mean time between failures (MTBF)



1452667 Hour


Memory type



DRAM


Processor frequency



800 MHz


Processor model



ARM7


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45/Mini-USB


SFP+ module slots quantity



4


USB 2.0 ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



110 - 220 V


Input current



0.29 - 0.48 A


Power consumption (max)



39.36 Watt


Power consumption (typical)



34.4 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



3.95 kg


Product Depth



27.25 cm


Product Height



4.39 cm


Product Width



44.45 cm


Protocols



Management protocols



SNMP


Security



Access Control List (ACL)



Yes


Authentication



Web-based authentication


Authentication type



RADIUS


BPDU filtering/protection



Yes


DHCP features



DHCP snooping


IGMP entries



1024


IGMP snooping



Yes


Loop protection



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
