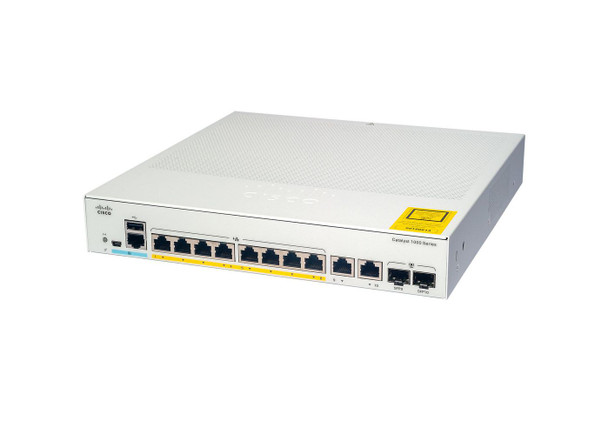

Cisco C1000-8FP-E-2G-L P-E-2G-L Network Switch C1000-8FP-E-2G-L

The Cisco Catalyst 1000-8FP-E-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

Data transmission



Forwarding rate



14.88 Mpps


Jumbo frames



10240


Jumbo frames support



Yes


MAC address table



16000 entries


Number of static routes



16


Static route



Yes


Switching capacity



20 Gbit/s


Design



LED indicators



Y, Yes


Product colour



Grey


Logistics data



Harmonized System (HS) code



85176990


Quantity per pack



1 pc(s)


Management features



ARP inspection



Yes


Configuring Location Settings (CLI)



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Traffic classification



Yes


Web-based management



Yes


Multicast features



IPv4 multicast entries



1024


IPv6 multicast entries



1024


Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



256


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4500 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Other features



Packaging content



C1000-8FP-E-2G-L Switch, External power adapter, Accessory Kit, 1 printed document


Package dimensions



Depth (package,cm)



34.92 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



16.03 cm


Width (package,cm)



30.96 cm


Performance



Built-in processor



Yes


Flash memory



256 MB


Internal memory



512 MB


Mean time between failures (MTBF)



1706649 Hour


Memory type



DRAM


Processor frequency



800 MHz


Processor model



ARM7


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Combo SFP ports quantity



2


Console port



RJ-45/Mini-USB


USB 2.0 ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



110 - 220 V


Input current



0.22 - 0.27 A


Power consumption (max)



22 Watt


Power consumption (typical)



21.3 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



15 Watt


Power over Ethernet (PoE) type supported



PoE+


Total Power over Ethernet (PoE) budget



120 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



18.49 cm


Product Height



4.39 cm


Product Width



26.82 cm


Protocols



Management protocols



SNMP


Security



Access Control List (ACL)



Yes


Authentication



Web-based authentication


Authentication type



RADIUS


BPDU filtering/protection



Yes


DHCP features



DHCP snooping


IGMP entries



1024


IGMP snooping



Yes


Loop protection



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
