Cisco

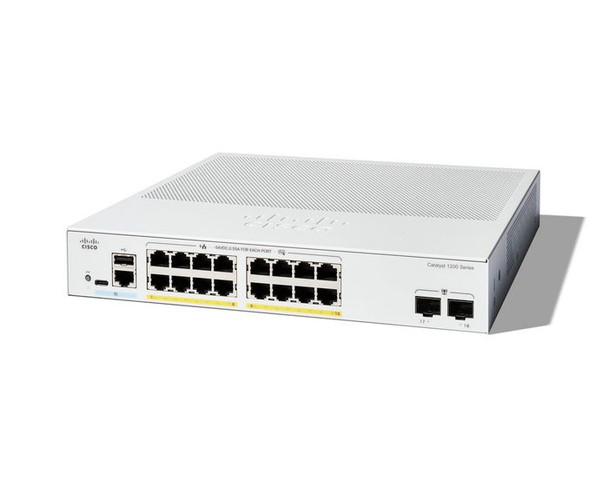

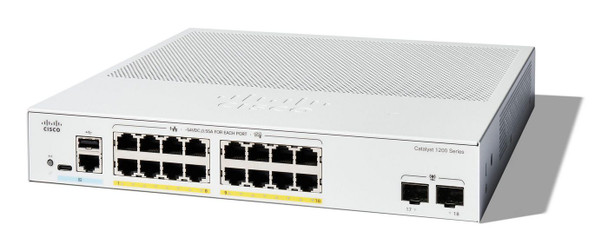

Cisco C1200-16P-2G Catalyst 1200 Managed L2 C1200-16P-2G
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- C1200-16P-2G
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Cisco Catalyst 1200-16P-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Data transmission
Forwarding rate
26.78 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
8000 entries
Number of static routes
32
Packet buffer memory
1.5 MB
Static route
Yes
Switching capacity
36 Gbit/s
Design
LED indicators
Y, Yes
Product colour
Grey
Rack mounting
Yes
Management features
Configuring Location Settings (CLI)
Yes
MIB support
Y
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
Broadcast storm control
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs
255
Port mirroring
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Heat dissipation
536.05 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-5 - 50 �C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-25 - 70 �C
Other features
Packaging content
Switch, power cable, USB Type C cable and mounting hardware
Package dimensions
Depth (package,cm)
39.9 cm
Gross Weight (Package, kg)
1.3 kg
Height (package,cm)
10.79 cm
Width (package,cm)
41.4 cm
Performance
Mean time between failures (MTBF)
706983 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/USB Type-C
SFP module slots quantity
2
Power
AC input frequency
50/60 Hz
AC input voltage
110 - 220 V
Power consumption (max)
156.4 Watt
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
120 Watt
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
26.82 cm
Product Height
4.39 cm
Product Width
29.69 cm
Security
Access Control List (ACL)
Yes
Authentication
Guest VLAN
Authentication type
RADIUS
DHCP features
DHCP client
IGMP entries
255
IGMP snooping
Yes
Loop protection
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
View AllClose
Data transmission
Forwarding rate
26.78 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
8000 entries
Number of static routes
32
Packet buffer memory
1.5 MB
Static route
Yes
Switching capacity
36 Gbit/s
Design
LED indicators
Y, Yes
Product colour
Grey
Rack mounting
Yes
Management features
Configuring Location Settings (CLI)
Yes
MIB support
Y
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
Broadcast storm control
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs
255
Port mirroring
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Heat dissipation
536.05 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-5 - 50 �C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-25 - 70 �C
Other features
Packaging content
Switch, power cable, USB Type C cable and mounting hardware
Package dimensions
Depth (package,cm)
39.9 cm
Gross Weight (Package, kg)
1.3 kg
Height (package,cm)
10.79 cm
Width (package,cm)
41.4 cm
Performance
Mean time between failures (MTBF)
706983 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/USB Type-C
SFP module slots quantity
2
Power
AC input frequency
50/60 Hz
AC input voltage
110 - 220 V
Power consumption (max)
156.4 Watt
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
120 Watt
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
26.82 cm
Product Height
4.39 cm
Product Width
29.69 cm
Security
Access Control List (ACL)
Yes
Authentication
Guest VLAN
Authentication type
RADIUS
DHCP features
DHCP client
IGMP entries
255
IGMP snooping
Yes
Loop protection
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
Related Products
Cisco C1200-16T-2G Cisco Catalyst 1200-16T-2G C1200-16T-2G
Cisco
£341.88
Cisco Catalyst 1200-16T-2G Smart Switch, 16 Port GE,

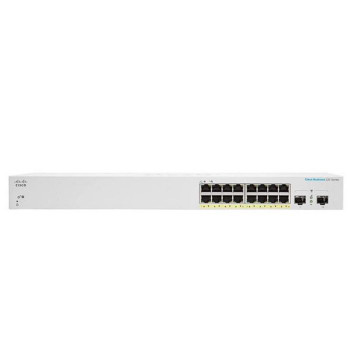

Cisco CBS220-16P-2G-EU Cbs220-16P-2G Managed L2 CBS220-16P-2G-EU
