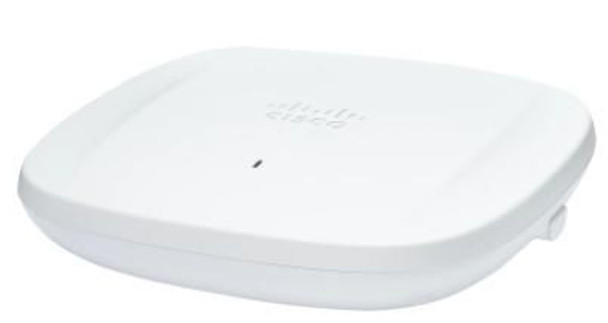

Cisco C9136I-E C9136I White Power Over C9136I-E

The Cisco� Catalyst� 9136 Series Access Points are the next generation of enterprise access points supporting the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent.

Catalyst 9136I access point
The Wi-Fi 6E-compliant Catalyst 9136 Series takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with two 4x4 radios and one 8x8 radio and provide a host of features.

Wi-Fi 6E technology extends Wi-Fi 6 into the 6-GHz spectrum, bringing faster speeds and lower latency while also providing more security to the network. As apps become increasingly vital for getting work done, clients need unencumbered access to them. Wi-Fi 6E provides that direct access.

Network speed increases due to the new 6-GHz spectrum and additional bandwidth.

A new standard of reliability and predictability of connection that is shortening the gap between wireless and wired connections. Wi-Fi 6E devices won�t have to share the same spectrum with any devices that are not Wi-Fi 6E compliant and will have an additional 1.2 GHz of no-interference spectrum to themselves.

Greater network security than ever before, due to mandatory WPA3 security.

Antenna



Antenna direction type



Omni-directional


Antenna gain level (max)



6 dBi


Antenna type



Internal


Antennas quantity



3


Design



LED indicators



Activity, Operation


Placement



In-wall, Table


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


6 GHz



Yes


Cyclic Shift Diversity (CSD)



Yes


Ethernet LAN data rates



100, 1000, 2500, 5000


Maximal-Ratio Combining (MRC)



Yes


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at


Management features



Firmware upgradeable



Yes


Web-based management



Yes


Operational conditions



Non-operating altitude



0 - 4600 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-30 - 70 �C


Package dimensions



Gross Weight (Package, kg)



2.15 kg


Packaging content



Number of products included



1 pc(s)


Performance



Flash memory



1024 MB


Internal memory



2048 MB


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



2


USB 2.0 ports quantity



1


Power



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1.65 kg


Product Depth



25.1 cm


Product Height



5.6 cm


Product Width



25.1 cm


Security



Security algorithms



TLS, WPA2, WPA3


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
