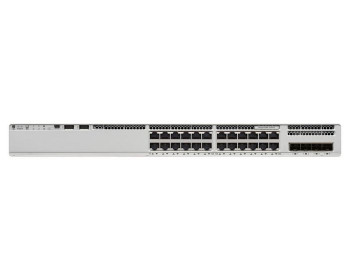

Cisco C9200L-24P-4G-E Catalyst 9200L Managed L3 C9200L-24P-4G-E

Extend Intent-Based Networking Everywhere

Cisco� Catalyst� 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise � it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry�s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Data transmission



Forwarding rate



41.66 Mpps


Jumbo frames



9198


Jumbo frames support



Yes


MAC address table



16000 entries


Packet buffer memory



6 MB


Switching capacity



56 Gbit/s


Design



Certification



RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1


Electromagnetic compatibility



47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317


Product colour



Grey


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Traffic classification



Yes


Web-based management



Yes


Multicast features



IPv4 multicast entries



3000


IPv6 multicast entries



1500


Multicast MAC address table



1000 entries


Multicast support



Yes


Network



10G support



Yes


Copper ethernet cabling technology



10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


IP routing



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4096


Routing entries



3000


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 45 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



4.35 kg


Performance



Flash memory



4000 MB


Harmonized System (HS) code



85176990


Internal memory



2000 MB


Memory type



DRAM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Fast Ethernet (copper) ports quantity



20


Gigabit Ethernet (copper) ports quantity



4


Power connector



AC-in jack


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



1.6 - 0.7 A


Power consumption (typical)



125 Watt


Power supply included



Yes


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Power over Ethernet plus (PoE+) ports quantity



24


Product dimensions



Net Weight (Product, kg)



4.35 kg


Product Depth



28.8 cm


Product Height



4.4 cm


Product Width



44.5 cm


Protocols



Management protocols



SNMPv1/v2c/v3


Routing protocols



CDP, EIGRP, OSPF, RIP, VRRP


Security



Access Control List (ACL)



Yes


Security algorithms



128-bit AES


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
