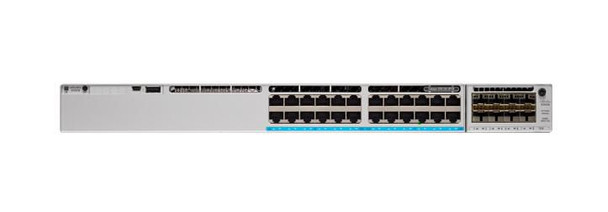

Cisco C9300-24U-A 00-24U-A Network Switch C9300-24U-A

The Cisco� Catalyst� 9300 Series Switches are Cisco�s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry�s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access
(SD-Access), Cisco�s lead enterprise architecture. At 480 Gbps, they are the industry�s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise� technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower�, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE�) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access� Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The foundation of Software-Defined Access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA�) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.

Data transmission



Forwarding rate



154.76 Mpps


Jumbo frames



9198


Jumbo frames support



Yes


MAC address table



32000 entries


Switching capacity



208 Gbit/s


Design



Product colour



Grey


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2/L3


Switch type



Managed


Multicast features



Multicast support



Yes


Network



Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z


Number of VLANs



4094


VLAN support



Yes


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



10.04 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Product dimensions



Net Weight (Product, kg)



7.72 kg


Product Depth



44.5 cm


Product Height



4.4 cm


Product Width



44.5 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP snooping


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
