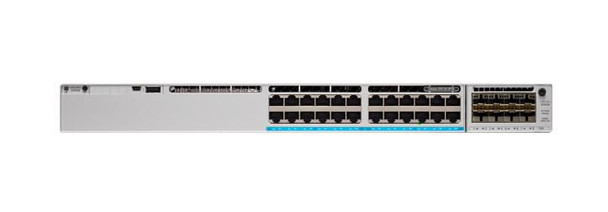

Cisco C9300L-24T-4G-E Network Switch Managed L2/L3 C9300L-24T-4G-E

The Cisco� Catalyst� 9300 Series switches are Cisco�s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry�s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco�s lead enterprise architecture. At up to 480 Gbps, they are the industry�s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise� technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower�, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE�) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access� Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS� XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence

Data transmission



Jumbo frames support



Yes


MAC address table



32000 entries


Design



Product colour



Grey


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2/L3


Switch type



Managed


Multicast features



Multicast support



Yes


Network



Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z


Number of VLANs



4000


VLAN support



Yes


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



8.81 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Product dimensions



Net Weight (Product, kg)



6.78 kg


Security



Access Control List (ACL)



Yes


DHCP features



DHCP snooping


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
