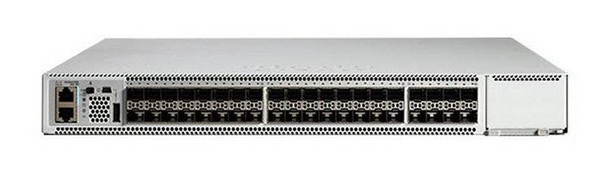

Cisco C9500-40X-E Network Switch Managed L2/L3 C9500-40X-E

The Cisco� Catalyst� 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco�s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

The Catalyst 9500 Series is the industry�s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP+) and 1G/10G Small Form-factor Pluggable Plus (SFP/SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise� virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Data transmission



Jumbo frames



9198


Jumbo frames support



Yes


MAC address table



16000 entries


Switching capacity



960 Gbit/s


Throughput



720 Mpps


Design



Form factor



1U


Product colour



Grey


Rack mounting



Yes


Management features



MIB support



Y


Switch layer



L2/L3


Switch type



Managed


Multicast features



IPv4 multicast entries



48000


IPv6 multicast entries



48000


Multicast support



Yes


Network



10G support



Yes


Full duplex



Yes


Number of VLANs



4000


Virtual LAN features



Private VLAN, Policy-based VLAN


VLAN support



Yes


Operational conditions



Operating altitude



0 - 1828 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 65 �C


Other features



Dimensions (W x D x H) (imperial)



17.5 x 21.52 x 1.73 "


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Built-in processor



Yes


Flash memory



16000 MB


Internal memory



16000 MB


Mean time between failures (MTBF)



180640 Hour


Memory type



DRAM


Processor frequency



2400 MHz


Ports & interfaces



Basic switching RJ-45 Ethernet ports type



No


SFP+ module slots quantity



40


Power



AC input frequency



50 - 60 Hz


AC input voltage



90 - 264 V


Input current



10 A


Output current



3 A


Output voltage



12 V


Power consumption (max)



850 Watt


Power supply included



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Protocols



IPv4 FIB entries



64000


IPv6 FIB entries



32000


Management protocols



IGMP


Security



Access Control List (ACL)



Yes


Access Control List (ACL) IPv4 entries



18000


Access Control List (ACL) IPv6 entries



18000


DHCP features



DHCP snooping


IGMP entries



16000


IGMP snooping



Yes


MAC address filtering



Yes


Security algorithms



256-bit AES


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
