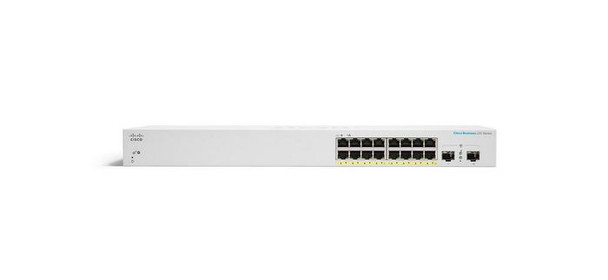

Cisco CBS220-16T-2G-EU Cbs220-16T-2G Managed L2 CBS220-16T-2G-EU

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution..

With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees.

Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.

Data transmission



Jumbo frames



9216


Jumbo frames support



Yes


MAC address table



8192 entries


Switching capacity



36 Gbit/s


Design



LED indicators



Y, Yes


Product colour



White


Rack mounting



Yes


Reset button



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Configuring Location Settings (CLI)



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Number of multicast groups filtered



256


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Flow control support



Yes


Head-of-line (HOL) blocking



Yes


Link aggregation



Yes


Networking standards



IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x


Number of VLANs



256


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



38.9 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



3.22 kg


Performance



Firmware upgradeable



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


Product dimensions



Net Weight (Product, kg)



2.48 kg


Product Depth



20.3 cm


Product Height



4.4 cm


Product Width



44 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


Management protocols



SNMP


Security



Access Control List (ACL)



Yes


Access Control List (ACL) rules



512


BPDU filtering/protection



Yes


DHCP features



DHCP client


IGMP entries



256


IGMP snooping



Yes


Loop protection



Yes


MAC address filtering



Yes


Security algorithms



SSL/TLS


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
