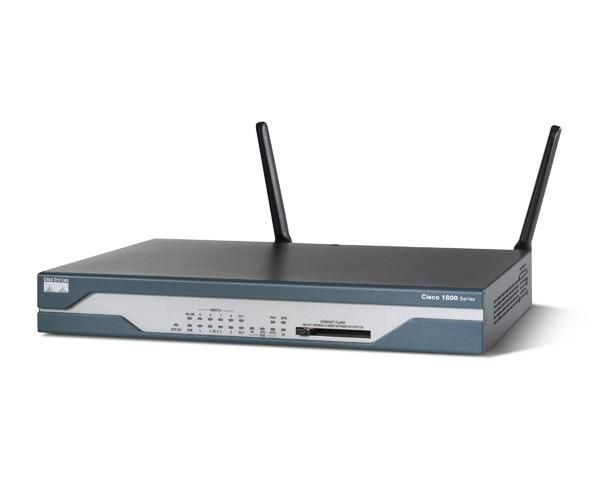

Cisco CISCO1812/K9-RFB 1800 S Dual Ethn. Sec. Router CISCO1812/K9-RFB

Ready to Replace an Old Router?

Before you buy, compare this series with our newer 4000 Series ISRs, which provide network, compute, and built-in WAN services at up to 10 times the performance of previous-generation ISRs.

- Take advantage of our free network inventory service to see if you have obsolete or end-of-support equipment you may want to replace. Learn more about Cisco Active Advisor.
- See why now is the time to evolve your WAN. Download the latest white paper from ZK Research, then speed deployment with our design guide.Get started.

Cisco 1800 Fixed-Configuration Integrated Services are the next evolution of the award-winning Cisco 1700 Series modular access routers. The Cisco 1800 Series fixed-configuration routers are designed for secured broadband access, Metro Ethernet, and wireless connectivity. They also help businesses reduce costs by enabling deployment of a single device to provide multiple services typically performed by separate devices.

The Cisco 1812 Integrated Services Router provides:
- Secure broadband access with concurrent services for branch and small offices
- Integrated ISDN Basic Rate Interface (BRI), analog modem, or Ethernet backup port for redundant WAN links and load balancing
- LAN Switching with optional inline POE
- Secure wireless LAN for simultaneous 802.11a and 802.11b/g operation with use of multiple antennas
- Advanced security including:- Stateful Inspection Firewall
- IP Security (IPSec) VPNs (Triple Data Encryption Standard [3DES] or Advanced Encryption Standard [AES])
- Dynamic Multipoint VPN (DMVPN) and Easy VPN
- Intrusion Prevention System (IPS)
- Antivirus support through Network Admission Control (NAC) and enforcement of secure access policies

The Cisco 1811 and 1812 provide high-speed broadband or Ethernet access through two 10/100BASE-T Fast Ethernet WAN ports and also provide integrated WAN backup through a V.92 analog modem (Cisco 1811) or ISDN S/T BRI interface (Cisco 1812). The Cisco 1811 and 1812 routers are focused on Ethernet access and are designed to be offered as customer premises equipment (CPE) in Metro Ethernet deployments. The eight-port switch is sufficient for connecting multiple devices and the optional PoE capability can supply power to IP telephones or other devices.

Design



LED indicators



Y, Yes


Product colour



Black, Blue, Stainless steel


Features



Flash memory



32 MB


Internal memory



128 MB


Safety



UL 60950, CAN/CSA C22.2 No. 60950, IEC 60950-1, EN 60950-1, AS/NZS 60950


Management features



Quality of Service (QoS) support



Yes


Web-based management



Yes


Mobile network



3G



No


4G



No


Network



Cabling technology



10/100Base-T(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100


Ethernet LAN interface type



Fast Ethernet


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 65 �C


Other features



Form factor



1U


I/O ports



1 x ISDN S/T BRI 1 x cnsl


Mobile network connection



No


Rack mounting



Yes


USB ports quantity



2


xDSL connection



No


Package dimensions



Gross Weight (Package, kg)



3 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Product dimensions



Net Weight (Product, kg)



3 kg


Product Depth



24.64 cm


Product Height



4.8 cm


Product Width



32.36 cm


Security



Filtering



Yes


Firewall security



Cisco IOS


MAC address filtering



Yes


Security algorithms



128-bit AES, 192-bit AES, 256-bit AES, 3DES, AES, DES, EAP-FAST, LEAP, WEP, WPA, WPA2


Vendor information



Brand Name


Cisco


Warranty



3 Month(s)


WAN connection



Ethernet WAN



Yes
