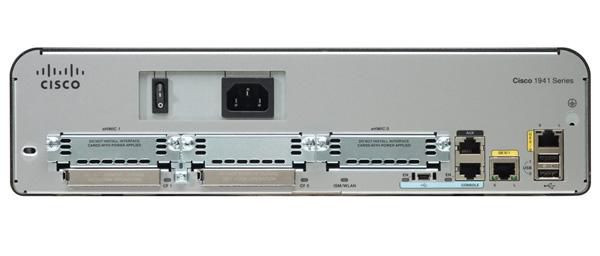

Cisco CISCO1941/K9-RFB 1941 INTEGRATED SERVICE CISCO1941/K9-RFB

Cisco� 1900 Series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. The new platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The Integrated Services Routers Generation 2 platforms are future-enabled with multi-core CPUs, Gigabit Ethernet switching with enhanced POE, and new energy monitoring and control capabilities while enhancing overall system performance. Additionally, a new Cisco IOS� Software Universal image and Services Ready Engine module enable you to decouple the deployment of hardware and software, providing a stable technology foundation which can quickly adapt to evolving network requirements. Overall, the Cisco 1900 Series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services.

Product Overview

Cisco� 1941 builds on the best-in-class offering of the existing Cisco 1841 Integrated Services Routers by offering 2 models - Cisco 1941 and Cisco 1941W. In addition to the support of a wide range of wireless and wired connectivity options supported on Cisco 1941 Series, Cisco 1941W offers integration of IEEE 802.11n access point which is backwards compatible with IEEE 802.11a/b/g access points.

All Cisco 1900 Series Integrated Services Routers offer embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, xDSL, 3G, 4G LTE, and GE.

Design



LED indicators



Y, Yes


On/off switch



Yes


Product colour



Silver


Rack capacity



2U


Rack mounting



Yes


Features



Built-in processor



Yes


Electromagnetic compatibility



47 CFR, Part 15, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI V-3, CNS 13438, EN 300-386, EN 61000 (Immunity), EN 55024, CISPR 24, EN50082-1


Flash memory



256 MB


Internal memory



512 MB


Safety



UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1


Management features



Quality of Service (QoS) support



Yes


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.1Q, IEEE 802.3, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u


Operational conditions



Non-operating altitude



0 - 4570 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



7.3 kg


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



2


RS-232 ports



2


USB ports quantity



2


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



110 Watt


Power source type



AC


Product dimensions



Net Weight (Product, kg)



7 kg


Product Depth



29.21 cm


Product Height



8.89 cm


Product Width



34.29 cm


Protocols



Management protocols



SNMP, RMON


Routing protocols



BGP, EIGRP, IGRP, IS-IS, OSPF


Supported network protocols



IPSec


Security



MAC address filtering



Yes


Security algorithms



EAP-FAST, EAP-MD5, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA, WPA2


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


WAN connection



Ethernet WAN



Yes
