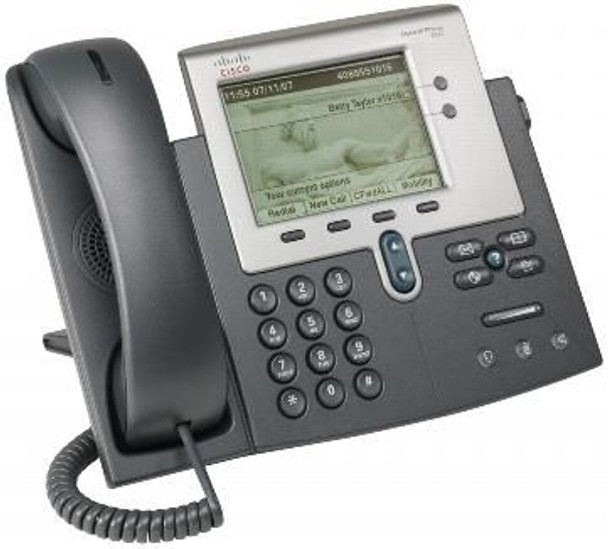

Cisco CP-7942G=-RFB Unified IP Phone 7942G. Spare CP-7942G=-RFB

The Cisco Unified IP Phone 7942G is a full-featured IP phone with speakerphone and handset designed for wideband audio. It is intended to meet the needs of needs of transaction-type workers with significant phone traffic. It has two programmable backlit line/feature buttons and four interactive soft keys that guide you through all call features and functions. The phone has a large, 4-bit grayscale graphical LCD that provides features such as date and time, calling party name, calling party number, digits dialed, and presence information. The crisp graphic capability of the display allows for the inclusion of higher value, more visibly rich Extensible Markup Language (XML) applications, and support for localization requiring double-byte Unicode encoding for fonts. A hands-free speakerphone and handset designed for hi-fidelity wideband audio are standard on the Cisco Unified IP Phone 7942G, as is a built-in headset connection and an integrated Ethernet switch.

Call management



Call forwarding



Yes


Call waiting



Yes


Caller ID



Yes


Conference call



Yes


Explicit call transfer



Yes


Design



Mounting type



Wall


Product colour



Grey


Display



Built-in display



Yes


Display



LCD


Display number of colours



Monochrome


Display resolution



320 x 222 Pixels


Display size (HxV) (imperial)



5 "


Management features



Volume control



Digital


Multimedia



Voice codecs



G.711a, G.722, G.729a, iLBC


Operational conditions



Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



10 - 40 �C


Storage temperature (T-T)



-10 - 60 �C


Other features



Cabling technology



10/100Base-TX


Dimensions (WxDxH)



267 x 152 x 203 mm


Ethernet LAN (RJ-45) ports



2


Mac compatibility



No


Networking standards



IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af


Security algorithms



128-bit AES


Supported network protocols



TFTP, DHCP


VoIP protocols



SCCP, SIP


Wall mountable



Yes


Package dimensions



Gross Weight (Package, kg)



1.6 kg


Performance



Answering machine



No


Phone features



Dialer location



Base


Multi handset capability



1


Speakerphone



Yes


Ports & interfaces



Headset connectivity



Yes


Power over Ethernet (PoE)



Yes


Wireless connection



No


Product dimensions



Net Weight (Product, kg)



1.6 kg


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
