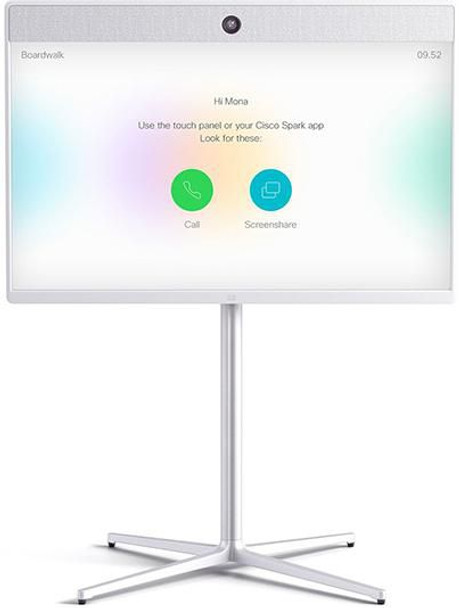

Cisco CS-ROOM55-K9 Video Conferencing System CS-ROOM55-K9

Cisco Webex� Room 55 combines an unmatched video and audio experience with a sophisticated, Red Dot�awarded design to create a compelling team collaboration system.

The Room 55, which includes camera, codec, display, speaker system, and microphones integrated in a single device, is optimized for rooms that seat up to seven people. It is an all-in-one, integrated system that�s easy to install, use, deploy, and manage. It�s crafted with high-quality components: professional 4K display for longevity and minimal latency, powerful digital zoom camera for discreet tracking, sophisticated speaker system and amplifier to deliver rich sound, and a light industrial design that combines aluminum and fabric for a sustainable and humanizing effect.

The Cisco Webex Room 55 has the Cisco Webex Room Kit as its base technology, bringing new capabilities such as speaker tracking, best overview, automatic wake-up, and people count to enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations. These features and functionalities further remove the barriers to usage and deployment of video in small- to medium-sized meeting rooms. The Room 55 is rich in functionality and experience but is priced and designed to be easily scalable to all of your meeting rooms and spaces, whether registered on-premises or to Cisco Webex.

Audio



Built-in speaker(s)



Yes


Frequency range



70 - 20000 Hz


Number of speakers



2


RMS rated power



80 Watt


Voice codecs



AAC, G.711, G.722, G.722.1, G.729, OPUS


Camera



Auto Focus (AF) object detection



Face


Effective sensor resolution



15.1 MP


Horizontal field of view



83 �


Image sensor size



1/1.7 "


Megapixel (approx.)



15.1 MP


Optical zoom



3 x


Sensor type



CMOS


Vertical field of view



51.5 �


White balance



Auto


Display



Built-in display



Yes


Display



LCD


Display brightness



500 cd/m�


Display diagonal



55 "


Display resolution



3840 x 2160 Pixels


Viewing angle, horizontal



178 �


Viewing angle, vertical



178 �


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



49.4 kg


Performance



Number of cameras



1


Product colour



Grey


Product type



Group video conferencing system


Wall mountable



Yes


Ports & interfaces



USB 2.0 ports quantity



2


USB connector type



USB Type-A, USB Type-B


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Current



1.8 A


Power consumption (max)



142 Watt


Power source type



AC


Product dimensions



Net Weight (Product, kg)



38 kg


Product Depth



83.2 cm


Product Height



13 cm


Product Width



124.5 cm


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Video



Dual stream



H.239 (H.323)


HD type



5K Ultra HD


Maximum frame rate



60 fps


Supported video modes



720p, 1080p


Video formats supported



H.264, H.265
