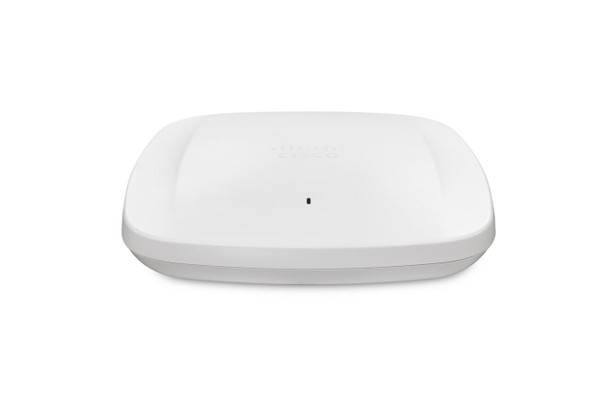

Cisco CW9164I-E Meraki Cw9164I 7490 Mbit/S CW9164I-E

Flexible Deployment Options

With the flexibility to choose between cloud- and on-premises management, the Catalyst 9164 Series Access Point ensures network investment protection and unlocks the power of hybrid work. The Wi-Fi 6E-compliant access point takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with one 2x2:2 and two 4x4:4 radios and provide a host of cutting-edge features.

With the industry�s leading network architecture (Catalyst) joining the industry�s leading cloud IT platform (Meraki), this access point provides an unparalleled network experience. For organizations that need solutions to power hybrid work, and that allow their people to work anywhere at any given time with elevated, secure, and connected experiences, the Cisco Catalyst 9164 Series Access Points are the best choice.

Operational management is not static, as customers are able to change their network management whenever they want. If a network with Cisco Catalyst 9164 Series Access Points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware.

6 GHZ Radio Architecture
Tri-band configuration unlocks the use of the new spectrum in the 6GHz frequency range. This provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6GHz support ensures that the CW9164 supports future technologies.

Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels, the CW9164 offers high throughput, enterprise-grade security, and simple management.

The CW9164 provides a maximum of 7.49 Gbps* aggregate frame rate with concurrent 2.4 GHz, 5 GHz, and 6GHz radios. A dedicated fourth radio provides real-time WIDS/WIPS with automated RF optimization, and a fifth integrated IoT radio delivers Bluetooth scanning and beaconing.

With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the CW9164 makes an outstanding platform for the most demanding of uses. This includes high-density deployments and bandwidth or performance-intensive applications like voice (Cisco WebEx) and high-definition video.

CW9164 and Meraki cloud management

Management of the CW9164 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming deployment complexity and time-consuming staging process. Since the CW9164 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.

24x7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.

The CW9164�s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.

Antenna



Antenna direction type



Omni-directional


Antenna features



Integrated antenna


Antenna type



Internal


Design



Cable lock slot



Yes


Cable lock slot type



Kensington


LED indicators



Y, Yes


Placement



Ceiling


Product colour



White


Reset button



Yes


Features



2.4 GHz



Yes


5 GHz



Yes


6 GHz



Yes


Bluetooth



Yes


Bluetooth Low Energy (BLE)



Yes


Ethernet LAN data rates



100, 1000, 2500


Maximal-Ratio Combining (MRC)



Yes


Maximum data transfer rate



7490 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Quality of Service (QoS) support



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Wi-Fi Multimedia (WMM)/(WME)



Yes


Management features



Firmware upgradeable



Yes


Web-based management



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-30 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


USB 2.0 ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



24.13 cm


Product Height



5.69 cm


Product Width



24.13 cm


Security



Security algorithms



EAP-TLS, EAP-TTLS, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
