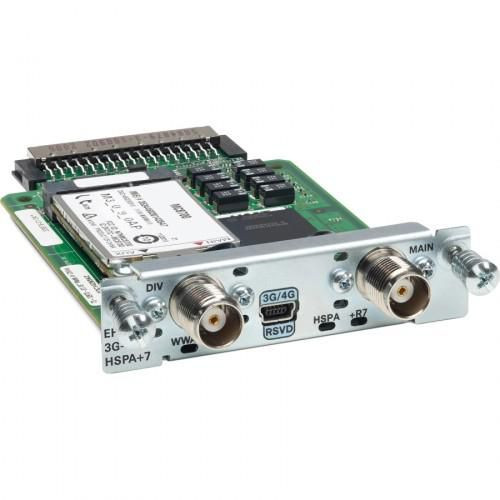

Cisco EHWIC-3G-HSPA+7 Cellular Network Device EHWIC-3G-HSPA+7

The Cisco 3G WWAN EHWICs are the first enterprise-class 3G WWAN solution. Suitable for both backup and primary applications, these cards support the latest 3G standards (Evolved High-Speed Packet Access [HSPA+] and Evolve-Data Optimized [EV-DO] Rev A) and are backward-compatible with High-Speed Packet Access (HSPA), Universal Mobile Telecommunications Service (UMTS), Enhanced Data Rates for Global Evolution (EDGE), General Packet Radio Service (GPRS), and EV-DO Rev 0/1xRTT. The Cisco 3G WWAN EHWICs Series has two variants:
- Global System for Mobile Communications (GSM) and UMTS models are based on 3GPP, and they support 3.7G HSPA+, 3.5G HSPA (Evolved High-Speed Packet Access (HSPA+/HSPA)), UMTS, EDGE, and GPRS.

- Code Division Multiple Access (CDMA) models are based on 3GPP2, and they support EV-DO Rev A/Rev 0 and 1xRTT.

The Cisco 3G WWAN EHWICs are tightly integrated with the services provided on the award-winning Cisco integrated services routers Gen 2 (ISR G2), which deliver secure data, voice, video, and mobility services. The Cisco 3G WWAN EHWICs are supported on the modular Cisco 1900, 2900 and 3900 Series Integrated Services Routers G2.
Enterprises are looking for ways to reduce costs, increase revenue, and improve business continuity. The Cisco 3G WWAN EHWICs, when coupled with a service provider wireless data plan, provide a cost-effective, rapidly deployable, reliable, and secure backup solution for remote sites and branch offices. With data rates approaching T1 speeds, 3G networks provide an alternative to wire line backup solutions such as dial-up, ISDN, cable, and DSL. If a network fails, the Cisco integrated services router routes mission-critical data to the Cisco 3G WWAN EHWIC for transmission across the wireless infrastructure. In addition, the router can distinguish different types of traffic and allow only mission-critical traffic to flow over the backup interface. The 3G wireless WAN EHWICs are available in multiple part numbers. The CDMA part number is EHWIC-3G-EVDO-x1 (where x reflects the wireless carrier), EHWIC-3G-HSPA-U, EHWIC-3G-HSPA+7-A, and EHWIC-3G-HSPA+7.

Antenna



Antenna connector type



TNC


Design



Device type



Cellular network router


LED indicators



Y, Yes


Market positioning



Industrial


Product colour



Multicolour


Ethernet LAN features



IP routing



Yes


xDSL connection type



DSL


GPS Performance



GPS (satellite)



Yes


Mobile network



Data network



3G, Edge, GPRS, HSPA, HSUPA, WCDMA


GSM bands supported



850, 900, 1800, 1900


Number of simultaneous SIM cards



1


Short Message Service (SMS)



Yes


UMTS bands supported



850, 900, 1900, 2100


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Performance



Certification



UL 60950-1,CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, FCC Part 2.1093, RSS-102, EN 50385


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



12.4 cm


Product Height



1.9 cm


Product Width



7.8 cm


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Wireless LAN features



Wi-Fi



No
