Cisco

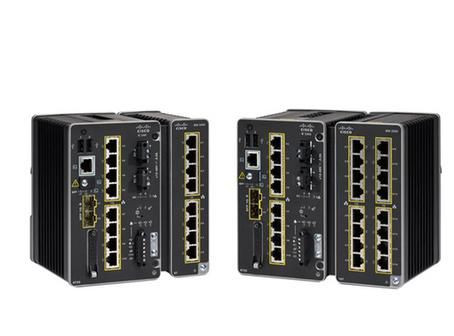

Cisco IE-3300-8P2S-E Catalyst Ie3300 Managed L2 IE-3300-8P2S-E
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- IE-3300-8P2S-E
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Cisco Catalyst IE3300 Rugged Series Data Sheet
The Cisco Catalyst IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
Cisco Catalyst IE3300 Rugged Series switches deliver high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS� XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco� Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch�.
The IE3300 series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
Data transmission
MAC address table
8000 entries
Number of queues
8
Design
Certification
UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
DIN rail mounting
Yes
International Protection (IP) code
IP20
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
ARP inspection
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
System event log
Yes
Multicast features
Multicast support
Yes
Network
Broadcast storm control
Yes
Link aggregation
Yes
Networking standards
IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol
Yes
Operational conditions
Non-operating altitude
0 - 4572 m
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 70 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
2.21 kg
Packaging data
Cables included
AC
Manual
Yes
User guide
Yes
Performance
Flash memory
1500 MB
Internal memory
4000 MB
Mean time between failures (MTBF)
3041040 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45
Power connector
AC-in jack
Power
AC input frequency
50 - 60 Hz
AC input voltage
120 - 230 V
DC input voltage
9.6 - 60 V
Input current
6.3 A
Power consumption (typical)
6 Watt
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1.7 kg
Product Depth
12.7 cm
Product Height
5.08 cm
Product Width
15.24 cm
Protocols
Management protocols
IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switching protocols
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Security
Access Control List (ACL)
Yes
Access Control List (ACL) IPv4 entries
2000
Access Control List (ACL) IPv6 entries
512
Authentication
Guest VLAN
BPDU filtering/protection
Yes
DHCP features
DHCP snooping
IGMP entries
1000
IGMP snooping
Yes
MAC address filtering
Yes
Security algorithms
802.1x RADIUS
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
View AllClose
The Cisco Catalyst IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
Cisco Catalyst IE3300 Rugged Series switches deliver high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS� XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco� Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch�.
The IE3300 series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
Data transmission
MAC address table
8000 entries
Number of queues
8
Design
Certification
UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
DIN rail mounting
Yes
International Protection (IP) code
IP20
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
ARP inspection
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
System event log
Yes
Multicast features
Multicast support
Yes
Network
Broadcast storm control
Yes
Link aggregation
Yes
Networking standards
IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol
Yes
Operational conditions
Non-operating altitude
0 - 4572 m
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 70 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
2.21 kg
Packaging data
Cables included
AC
Manual
Yes
User guide
Yes
Performance
Flash memory
1500 MB
Internal memory
4000 MB
Mean time between failures (MTBF)
3041040 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45
Power connector
AC-in jack
Power
AC input frequency
50 - 60 Hz
AC input voltage
120 - 230 V
DC input voltage
9.6 - 60 V
Input current
6.3 A
Power consumption (typical)
6 Watt
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1.7 kg
Product Depth
12.7 cm
Product Height
5.08 cm
Product Width
15.24 cm
Protocols
Management protocols
IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switching protocols
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Security
Access Control List (ACL)
Yes
Access Control List (ACL) IPv4 entries
2000
Access Control List (ACL) IPv6 entries
512
Authentication
Guest VLAN
BPDU filtering/protection
Yes
DHCP features
DHCP snooping
IGMP entries
1000
IGMP snooping
Yes
MAC address filtering
Yes
Security algorithms
802.1x RADIUS
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
