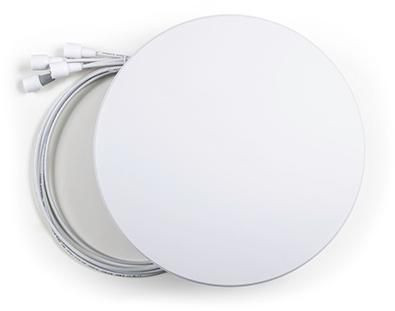

Cisco MA-ANT-3-D5 T-3-D5 Network Antenna MA-ANT-3-D5

The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki�s smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors.

Features



Antenna connector type



RP-TNC


Antenna type



Omni-directional antenna


Product colour



White


Logistics data



Harmonized System (HS) code



85177100


Operational conditions



Operating relative humidity (H-H)



5 - 93 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Performance



Antenna gain level (max)



3.7 dBi


Frequency band



2.4/5 GHz


Horizontal beam width (2.4 GHz)



360 �


Horizontal beam width (5 GHz)



360 �


Vertical beam width



60 �


Vertical beam width (2.4 GHz)



60 �


Vertical beam width (5 GHz)



60 �


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Height



3.7 cm


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Weight & dimensions



Diameter



22.5 cm
