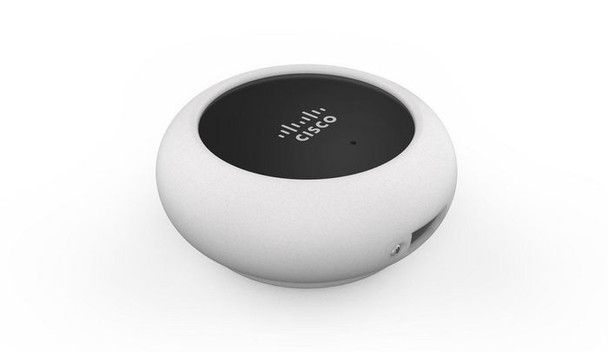

Cisco MA-PWR-MV-LV -Mv-Lv Poe Adapter 54 V MA-PWR-MV-LV

This unique accessory converts existing low voltage (12/24V) power supplies into PoE, allowing users to upgrade from analog to IP in just one installation step. Twin power cables can be disconnected from an analog camera and connected to the two terminals within the accessory in either order. The coaxial cable from the analog camera can simply be left in the wall and will no longer be used. Instead, video data will transmit wirelessly from the camera to the viewing computer (local connection) or through the Meraki cloud (for video proxy to a remote viewing device).

Easy Installation
Quickly convert standard low voltage power supplies (12/24V) to Power over Ethernet. Upgrading to MV cameras (MV12 and later) from analog simply requires a wireless connection and this accessory, which outputs POE. This device will even figure out which cable is connected to each terminal, removing the guesswork.

Features



Certification



EN 55035, EN 55024, EN 300 386 (Europe) FCC (USA) ICES-330 (Canada) CISPR 32 (Australia / New Zealand) VCCI (Japan)


Easy to install



Yes


LED indicators



Yes


Product colour



Black, White


Safety



CSA / CB / UL / TUV (electrical safety), CAN / CSA-C22.2 No. 60950-1-07), ANSI / UL Std. No. 60950-1, IEC / EN 60950-1, CB, RCM, UL 2043


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85044095


Network



Power over Ethernet (PoE)



Yes


Operational conditions



Operating temperature (T-T)



32 - 113 �F


Operating temperature (T-T)



0 - 45 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Number of products included



1 pc(s)


Quick installation guide



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Input current



2.2/2.75 A


Input voltage



24/12 V


Output current



0.43 A


Power over Ethernet (PoE) voltage



54 V


Product dimensions



Net Weight (Product, kg)



0.5 kg


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



82 x 82 x 35.5 mm
