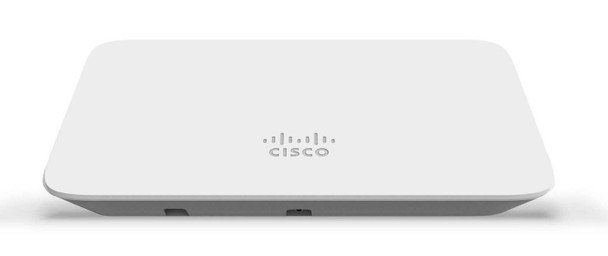

Cisco MR20-HW-RFB R20-Hw Wireless Access Point MR20-HW-RFB

Entry-level enterprise wireless
Cloud management, 802.11ac Wave 2 performance for small businesses and SOHO deployments

Ideal use cases
- Basic wireless LANs
- Very low-density deployments
- Small business and SOHO wireless

Guest access
- 1-click secure guest access
- Guest isolation firewall
- Customizable splash pages
- Integrated Facebook and Google login
- Cisco ISE integration for guest access and BYOD posturing

Cloud management
- Network-wide visibility and control
- Integrated analytics, reporting, and anomaly detection across networks
- Self-provisioning for rapid deployment
- Seamless firmware updates
- Redundancy and security built into cloud architecture

Device management
- Create device-specific firewall rules
- Monitor and track device inventory
- Deploy applications and enforce security settings
- Enterprise Mobility Management (EMM) and Mobility Device Management (MDM) integration

Layer 7 traffic shaping
- Classifies hundreds of applications
- Create per-application bandwidth limits
- Prioritize productivity apps
- Restrict or block recreational traffic

Antenna



Antenna features



Integrated antenna


Design



Cable lock slot



Yes


Certification



FCC, UL


Internal



No


LED indicators



LAN, Power


Placement



Ceiling, Floor, Wall, Window


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


Bandwidth



5 GHz


Channel bandwidth



80 MHz


Ethernet LAN data rates



10, 100, 1000


Maximal-Ratio Combining (MRC)



Yes


Maximum data transfer rate



1300 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3af, IEEE 802.3at


Wi-Fi Multimedia (WMM)/(WME)



Yes


Wi-Fi roaming



Yes


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



0.35 kg


Packaging content



Mounting kit



Yes


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Power



AC input voltage



12 V


Power consumption (max)



11 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.27 kg


Product Depth



12.4 cm


Product Height



2.58 cm


Product Width



20.2 cm


Security



Security algorithms



AES, EAP-SIM, EAP-TLS, EAP-TTLS, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK


Wireless Intrusion Detection System (WIDS)



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
