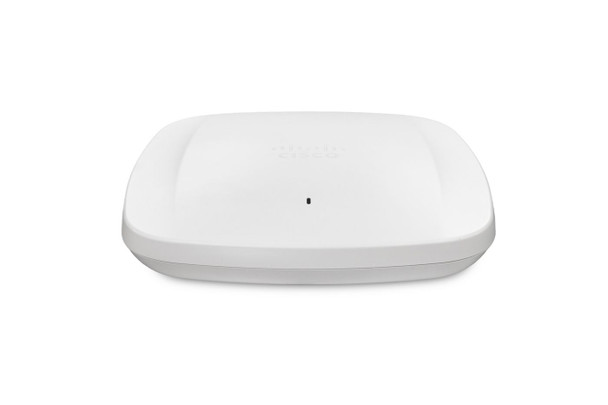

Cisco MR57-HW Mr57 White Power Over MR57-HW

Tri-band 802.11ax-compatible access point with separate radios dedicated to security, RF management, and Bluetooth� coupled with dual Ethernet ports and a USB port for added connectivity options.

Software configurable flex radio architecture for 6 GHz support

MR57 supports a software defined flex radio which can be toggled between a 5 GHz and 6 GHz. This provides an option to operate MR57 in either a dual 5 GHz configuration or a true tri-band configuration. Tri-band configuration unlocks the use of new spectrum in the 6 GHz frequency range which provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6 GHz support ensures that the MR57 supports future technologies.

High Performance 802.11ax compatible wireless

The Cisco Meraki MR57 is a cloud-managed 4x4:4 802.11ax compatible access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels, the MR57 offers high throughput, enterprise-grade security, and simple management. The MR57 provides a maximum of 7.78 Gbps* aggregate frame rate with concurrent 2.4 GHz, 5 GHz and 6 GHz radios. A dedicated fourth radio provides real-time WIDS/WIPS with automated RF optimization, and a fifth integrated IoT radio delivers Bluetooth scanning and beaconing. With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the MR57 makes an outstanding platform for the most demanding of uses�including high-density deployments and bandwidth or performance-intensive applications like voice (Cisco WebEx) and high-definition video.

Support for dual Ethernet ports to enable high availability

MR57 will support dual 5 Gigabit mGig Ethernet ports for high availability or for link aggregation. These ports can also be used for power-sharing to power up the AP and fully support the required functionality. The secondary Ethernet port can also be used for power and data sharing* or in a high availability mode* for added resiliency.

MR57 and Meraki cloud management

Management of the MR57 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming deployment complexity and time consuming staging process. Since the MR57 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24x7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. New features, bug fixes, and enhancements are delivered seamlessly over from the dashboard.

Antenna



Antenna type



Internal


Design



LED indicators



Y, Yes


Placement



Table, Wall


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


6 GHz



Yes


Ethernet LAN data rates



1000, 2500, 5000


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w


Spread spectrum method



OFDMA


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



2


Power



Power consumption (max)



40 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



26 cm


Product Height



5.6 cm


Product Width



26 cm


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
