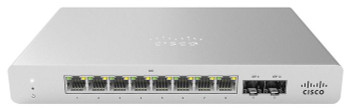

Cisco MS120-48-HW Meraki Ms120-48 Managed L2 MS120-48-HW

?isco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there�s no need for complicated configuration files or even direct physical access to the switch. Meraki�s centralized management gives administrators deep visibility into the network and how it�s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Data transmission



Jumbo frames



9578


Jumbo frames support



Yes


MAC address table



32000 entries


Switching capacity



104 Gbit/s


Design



Form factor



1U


Product colour



Grey


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w


Number of VLANs



4094


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Mean time between failures (MTBF)



692887 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


SFP module slots quantity



4


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Power consumption (max)



882 Watt


Power consumption (typical)



16 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



25 cm


Product Height



4.4 cm


Product Width



44 cm


Protocols



Management protocols



SNMP


Switching protocols



RSTP, STP, LLDP, CDP


Security



Access Control List (ACL)



Yes


BPDU filtering/protection



Yes


DHCP features



DHCP server, DHCP snooping, DHCP client


IGMP snooping



Yes


Root protection



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
