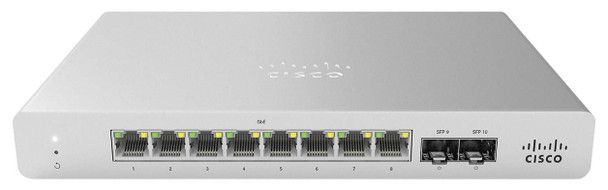

Cisco MS120-8FP-HW Meraki MS120-8FP Managed L2 MS120-8FP-HW

Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location. Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there�s no need for complicated configuration files or even direct physical access to the switch. Meraki�s centralized management gives administrators deep visibility into the network and how it�s used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.

Data transmission



Jumbo frames



9600


Jumbo frames support



Yes


MAC address table



16000 entries


Switching capacity



20 Gbit/s


Design



Product colour



Grey


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w


Number of VLANs



4094


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



1.55 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Power connector



DC-in jack


SFP module slots quantity



2


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


DC input voltage



56 V


Input current



2.7 A


Power consumption (max)



16 Watt


Power consumption (typical)



9 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1.55 kg


Product Depth



23 cm


Product Height



4.4 cm


Product Width



22.7 cm


Protocols



Management protocols



SNMP


Switching protocols



RSTP, STP, LLDP, CDP


Security



Access Control List (ACL)



Yes


BPDU filtering/protection



Yes


DHCP features



DHCP server, DHCP snooping, DHCP client


IGMP snooping



Yes


Root protection



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
