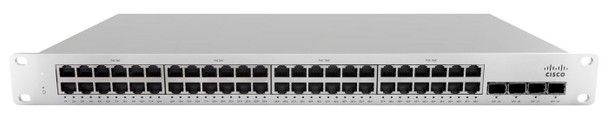

Cisco MS210-48LP-HW Network Switch Managed L3 MS210-48LP-HW

Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there�s no need for complicated configuration files or even direct physical access to the switch.
Meraki�s centralized management gives administrators deep visibility into the network and how it�s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Data transmission



Jumbo frames



9578


Jumbo frames support



Yes


MAC address table



32000 entries


Number of queues



8


Switching capacity



176 Gbit/s


Throughput



77.38 Mpps


Design



Certification



CSA-US, FCC, IC, CE, RCM, RoHS


Form factor



1U


Product colour



Silver


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad


Number of VLANs



4094


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Screws included



Yes


Performance



Firmware upgradeable



Yes


Mean time between failures (MTBF)



381015 Hour


Physical stacking (units)



8


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


SFP module slots quantity



4


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Power consumption (max)



882 Watt


Power consumption (typical)



15 Watt


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



48


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



34 cm


Product Height



4.38 cm


Product Width



48.46 cm


Protocols



Supported network protocols



LLDP, CDP


Security



Access Control List (ACL)



Yes


BPDU filtering/protection



Yes


DHCP features



DHCP snooping, DHCP relay


IGMP snooping



Yes


Password protection



Yes


Root protection



Yes


Security algorithms



802.1x RADIUS, SNMP


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
