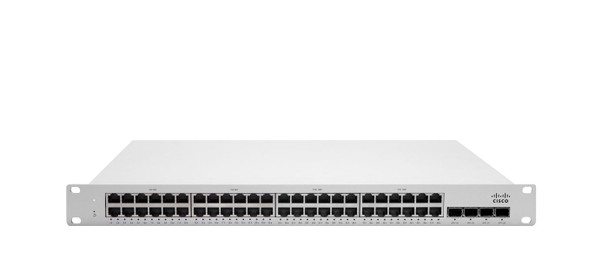

Cisco MS250-48LP-HW Meraki Ms250-48Lp L3 Stck MS250-48LP-HW

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- General purpose switch for campus or branch
- Physical and virtual stacking
- Redundant power
- Dynamic routing

Data transmission



Jumbo frames



9600


Jumbo frames support



Yes


MAC address table



32000 entries


Number of queues



8


Switching capacity



172 Gbit/s


Design



Form factor



1U


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Flow control support



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w


Number of VLANs



4095


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Package dimensions



Gross Weight (Package, kg)



7.57 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP+ module slots quantity



4


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power consumption (max)



480 Watt


Power consumption (typical)



46 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



5.82 kg


Product Depth



51.6 cm


Product Height



4.38 cm


Product Width



48.46 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


Security algorithms



802.1x RADIUS


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
