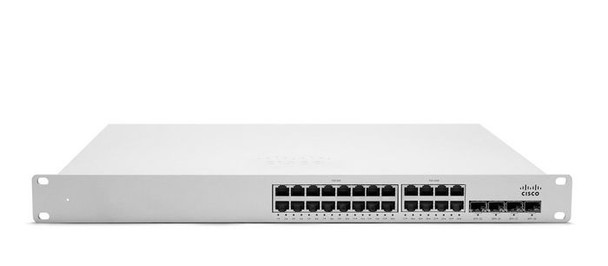

Cisco MS350-24X-HW Meraki Ms350-24X Managed L3 MS350-24X-HW

Switch ports/stacking ports
- 8 � mGig port
- 16 � 1G port model
- 4 � 10G SFP+ uplinks
- Stack up to 8 units
- 160 Gbps of physical stacking

Power/PoE
- Unpowered model
- MS350-24P includes 370W
- Up to 30W per 1G port
- Up to 60W per mGig port
- Modular power supply/fans

Hardware platform
- Reliable platform with 24/7 Meraki Support
- 1RU rack mountable
- Voice and video QoS
- Non-blocking switch fabric

Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates

Switching capabilities
- Layer 3
- Warm spare redundancy (VRRP)
- OSPF Routing
- MAC forwarding entries, up to 512K
- DHCP Server, DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs

Data transmission



Forwarding rate



202.38 Mpps


Jumbo frames



9600


Jumbo frames support



Yes


MAC address table



512000 entries


Switching capacity



272 Gbit/s


Design



Certification



CSA-US, FCC, IC, CE, RCM, RoHS


Form factor



1U


Product colour



White


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad


Number of VLANs



4094


Policy-based routing



Yes


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-5 - 50 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Firmware upgradeable



Yes


Mean time between failures (MTBF)



321515 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



24


SFP+ module slots quantity



4


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Power consumption (max)



867 Watt


Power consumption (typical)



215 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Power over Ethernet (PoE) power per port



60 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



59.47 cm


Product Height



4.44 cm


Product Width



48.46 cm


Protocols



Routing protocols



CDP


Switching protocols



DSCP-to-CoS, RSTP, STP, CDP, LLDP


Security



Authentication



Port-based authentication


Authentication type



RADIUS


DHCP features



DHCP server, DHCP snooping


IGMP snooping



Yes


Persistent MAC Learning (Sticky MAC)



Yes


Security algorithms



802.1x RADIUS


Whitelist



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
