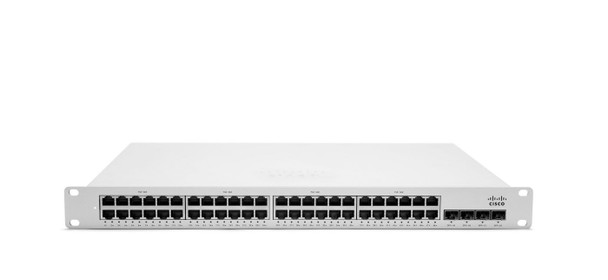

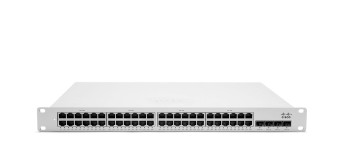

Cisco MS350-48-HW Ms350-48 Managed L3 Gigabit MS350-48-HW

Cloud Managed Switching for the Mission Critical Network

Cloud management

- Visibility and control over thousands of ports
- Built-in multi site management
- Zero touch provisioning

Monitoring and diagnostics

- Cable failure testing
- Gateway connectivity testing
- Real time troubleshooting tools
- Email and text message alerts

Layer 3

- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- First of a kind UI-based configuration
- Easy to configure routed interfaces
- Warm spare redundancy (VRRP)
- DHCP Failover

Data transmission



MAC address table



96000 entries


Switching capacity



176 Gbit/s


Design



Form factor



1U


LED indicators



Y, Yes


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z


Number of VLANs



4095


Spanning tree protocol



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 45 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Firmware upgradeable



Yes


Physical stacking (units)



8


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


ExpressCard slot



No


Gigabit Ethernet (copper) ports quantity



48


SFP+ module slots quantity



4


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Power consumption (max)



63 Watt


Power consumption (typical)



56 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



51.6 cm


Product Height



4.4 cm


Product Width



48.5 cm


Protocols



Management protocols



SNMP v2c


Security



Authentication



Port-based authentication


DHCP features



DHCP server


IGMP snooping



Yes


Security algorithms



802.1x RADIUS


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
