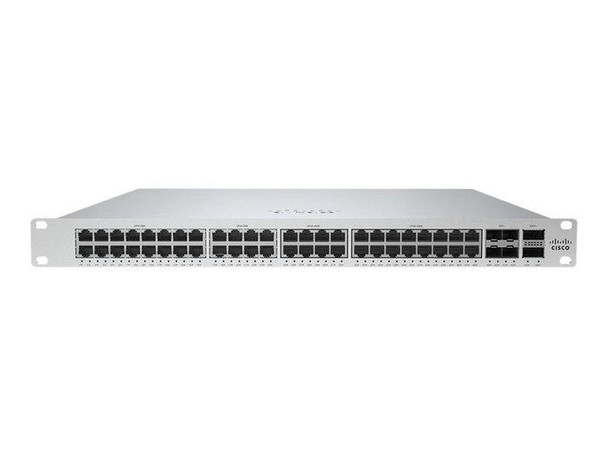

Cisco MS355-48X-HW 48X-Hw Network Switch Managed MS355-48X-HW

CLOUD-MANAGED STACKABLE MULTI-GIGABIT SWITCHES

The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.

The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port
power with UPoE, and field replaceable power supplies/fans.

All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line.

To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

Meraki�s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.

Data transmission



Forwarding rate



405 Mpps


Jumbo frames



9600


Jumbo frames support



Yes


MAC address table



32000 entries


Number of queues



8


Packet forwarding



Yes


Static route



Yes


Switching capacity



544 Gbit/s


Design



Certification



CSA-US, FCC, IC, CE, RCM, RoHS


Form factor



1U


Number of fans



3 fan(s)


Product colour



Silver


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Packet redirection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



Broadcast storm control



Yes


Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x


Number of VLANs



4094


Policy-based routing



Yes


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



Multicast VLAN, Stacked VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 45 �C


Optical fiber



Switching optical modules type



100 Gigabit Ethernet


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Cables included



AC, LAN (RJ-45)


Manual



Yes


User guide



Yes


Performance



Mean time between failures (MTBF)



343.134 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Gigabit Ethernet (copper) ports quantity



32


QSFP+ module slots quantity



2


SFP+ module slots quantity



4


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Power consumption (max)



1723 Watt


Power consumption (typical)



740 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



48.46 cm


Product Height



4.37 cm


Product Width



51.66 cm


Protocols



IPv4 & IPv6 features



Dual stack IPv4/IPv6


Routing protocols



CDP


Switching protocols



DSCP-to-CoS, RSTP, STP, CDP, LLDP


Security



Access Control List (ACL)



Yes


ARP attack prevention



No


Authentication



MAC-based authentication, Port-based authentication, Web-based authentication


Authentication type



RADIUS


BPDU filtering/protection



Yes


BPDU tunneling



Yes


DHCP features



DHCP snooping, DHCP relay


IGMP snooping



Yes


Loop protection



Yes


Neighbor discovery snooping



Yes


Password protection



Yes


Persistent MAC Learning (Sticky MAC)



Yes


Root protection



Yes


Whitelist



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
