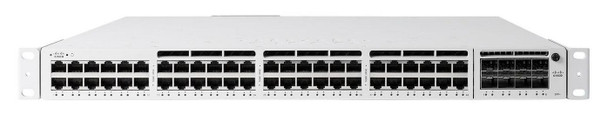

Cisco MS390-48U-HW 48U-Hw Network Switch Managed MS390-48U-HW

Overview

The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an overthe-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as �IOT device� & �Guest.� The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group�s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes. By pooling & distributing power across MS390s using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

Data transmission



Forwarding rate



190.48 Mpps


Jumbo frames support



Yes


MAC address table



32000 entries


Static route



Yes


Switching capacity



256 Gbit/s


Design



Form factor



1U


Number of fans



3 fan(s)


Product colour



White


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Multicast features



Multicast support



Yes


Network



Auto-negotiation



Yes


Broadcast storm control



Yes


Flow control support



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.11ax, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ad


Number of VLANs



4094


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 45 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Quick start guide



Yes


Rack mount kit



Yes


Performance



Mean time between failures (MTBF)



227410 Hour


Physical stacking (units)



8


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



844.9 Watt


Power consumption (typical)



145 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Total Power over Ethernet (PoE) budget



822 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



48.8 cm


Product Height



4.4 cm


Product Width



44.5 cm


Protocols



IPv4 & IPv6 features



IPv4/IPv6 access-control list (ACL)


Routing protocols



VRRP


Security



Access Control List (ACL)



Yes


Authentication type



RADIUS


BPDU filtering/protection



Yes


DHCP features



DHCP relay, DHCP server, DHCP snooping


IGMP snooping



Yes


Loop protection



Yes


Security algorithms



802.1x RADIUS, SNMP


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
