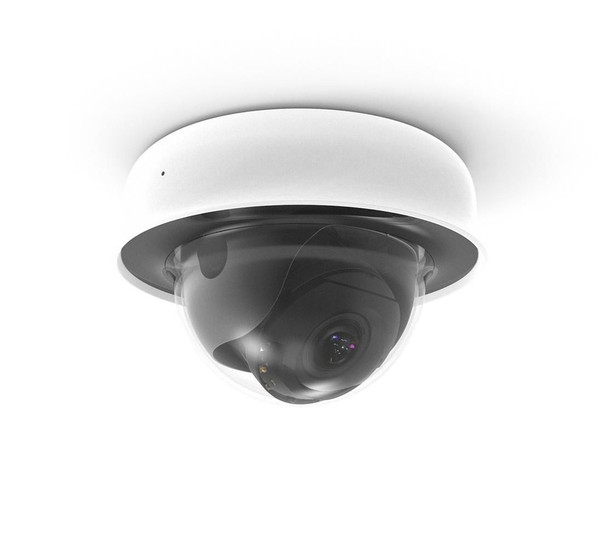

Cisco MV72-HW Meraki Mv72 Dome Ip Security MV72-HW

The MV Smart Camera family brings powerful, advanced analytics to the typical security camera world. With a powerful processor the same kind found on many of today�s smartphones�and an
innovative architecture which minimizes physical infrastructure as well as software requirements, these smart cameras from Cisco Meraki represent a shift from cameras simply ensuring physical safety and security, to providing powerful business intelligence as well.

MV: BEYOND JUST SECURITY
MV cameras feature an innovative architecture which places high-endurance storage locally on the camera and removes the network video recorder (NVR) from the equation. Not only does this drastically simplify both installation and scaling, but it also eliminates a major network security vulnerability in the IT infrastructure.

Features like LLDP insights, offline device alerting, and built-in remote troubleshooting tools reduce time to resolution and free up personnel to make IT improvements, providing added business value. And, because MV is managed through the browser-based Meraki dashboard and operates using a licensing model, there�s no need to purchase, download, and maintain any additional software. Management through the Meraki dashboard ensures firmware updates will continually roll out over the lifespan of the product, meaning its value will only increase over time.

Featuring an industry-leading processor, these cameras are not only capable of providing high definition (1080p) video, but they also allow for on-board analytics capabilities that previously required additional software and heavy-duty hardware.
Harnessing the power of computer vision and machine learning, this camera line can dynamically classify people as objects within a frame. This simple-seeming insight builds the foundation for more effective and efficient processes, like people counting. And the best part is that they will only get smarter, and more accurate, over time.

Camera



Angle of rotation



90 �


Camera shutter speed



1/30 - 1/32000 Second


Lens viewing angle, diagonal



138 �


Lens viewing angle, horizontal



112 �


Lens viewing angle, vertical



57 �


Minimum illumination



0.01 lx


Pan range



0 - 354 �


Tilt angle range



0 - 65 �


Design



Form factor



Dome


IK code



IK10


International Protection (IP) code



IP67


Mounting type



Ceiling


Product colour



Black, White


Image sensor



Number of effective pixels (H x V)



2688 x 1520 Pixels


Number of sensors



1


Optical sensor size



1/3 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Focal length range



3 - 9 mm


Maximum aperture number



2.3


Minimum aperture number



1.2


Number of lenses



1


Optical zoom



3 x


Zoom capability



Yes


Logistics data



Harmonized System (HS) code



85258900


Management features



Reset button



Yes


Network



Bluetooth



No


Cabling technology



10/100/1000Base-T(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Frequency band



5 GHz


Networking standards



IEEE 802.3af, IEEE 802.3at


Wi-Fi



Yes


Wi-Fi standards



802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)


Night vision



LED type



IR


Night vision



Yes


Night vision distance



30 m


Operational conditions



Operating temperature (T-T)



-40 - 50 �C


Package dimensions



Gross Weight (Package, kg)



2.6 kg


Packaging content



Mounting kit



Yes


Number of cameras



1


Quick installation guide



Yes


Performance



Antenna gain level (max)



4.4 dBi


Antenna type



Internal


Built-in heater



Yes


Connectivity technology



Wired


Day/night mode



Yes


Placement supported



Indoor & outdoor


Plug and Play



Yes


PTZ control



Yes


Type



IP security camera


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Interface



RJ-45


Power



Power consumption (max)



25.5 Watt


Power consumption (Power over Ethernet (PoE))



12.95 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



2 kg


Product Height



10.3 cm


Security



Security algorithms



256-bit AES, AES, EAP-TTLS, TKIP, WPA, WPA2-Enterprise, WPA2-PSK


Video motion detection



Yes


Storage



Built-in HDD



No


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Video



Frame rate



20 fps


Maximum resolution



1920 x 1080 Pixels


Supported graphics resolutions



1920 x 1080 (HD 1080)


Supported video modes



1080p


Total megapixels



4 MP


Video compression formats



H.264


Video formats supported



H.264


Weight & dimensions



Diameter



16.5 cm


Weight (with stand)



1.353 kg
