Cisco SX550X-12F-K9-EU Network Switch Managed L3 SX550X-12F-K9-EU

Advanced features for demanding environments at an affordable price

Your business is growing, and that means more customers, more opportunities, and more attention on your company. The only problem: Your network was built for a smaller operation. As you add more devices, applications, and users, your IT environment will become increasingly difficult and expensive to manage. Even worse, as the network becomes more complex and overloaded, your users are likely to see sluggish performance and even outages.

With customers and employees depending on your business more than ever before, a slow or unreliable network is not an option. You need an IT backbone that provides excellent performance, nonstop availability, and advanced security. The ideal network will be easy to manage, support advanced features that will grow with your company, and be at a price that�s affordable.

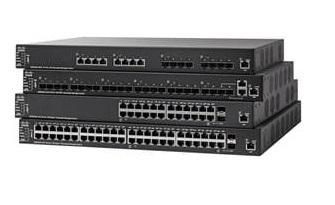

Cisco 550X Series Stackable Managed Switches

The Cisco� 550X Series (Figure 1) are the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The SG550X and SF550X models provide 24 or 48 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks. The SX550X models provide 12, 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

Data transmission



Jumbo frames support



Yes


MAC address table



32000 entries


Switching capacity



240 Gbit/s


Design



LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Configuring Location Settings (CLI)



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Broadcast storm control



Yes


Flow control support



Yes


Head-of-line (HOL) blocking



Yes


Link aggregation



Yes


Number of VLANs



4000


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



4.45 kg


Performance



Flash memory



256 MB


Internal memory



512 MB


Ports & interfaces



Combo SFP ports quantity



2


SFP+ module slots quantity



12


Power



AC input frequency



47/63 Hz


Product dimensions



Net Weight (Product, kg)



3.42 kg


Protocols



Management protocols



SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI


Supported network protocols



RIPv2, VRRP, PBR, static IPv4/IPv6 routing


Security



Access Control List (ACL)



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
