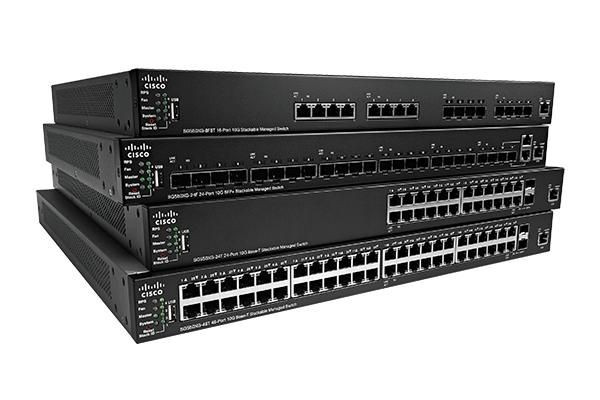

Cisco SX550X-16FT-K9-EU 550X Managed L2/L3 10G SX550X-16FT-K9-EU

Cisco 550X Series Stackable Managed Switches
Advanced features for demanding environments
Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Our next-generation stackable managed switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.

Affordable 10 Gigabit Ethernet
10 Gigabit Ethernet delivers 10 times the performance to your network to promote higher productivity and business efficiency. The 550X Series breaks the barrier of 10 Gigabit Ethernet adoptions with exceptional affordability.

Superior reliability and resiliency
Keep your network running so your business never slows down. The 550X Series offers true stacking, built-in fan redundancy, a redundant power supply connector, and high-availability protocols.

Advanced features
The 550X Series includes capabilities and management options you need to support applications today and in the future, such as strong security, advanced QoS, comprehensive IPv6 support, and Layer 3 dynamic routing.

Power over Ethernet
The Power over Ethernet Plus (PoE+) standard provides up to 30 watts of power per port. The 550X switches also support 60W PoE on selected ports to power compact switches and high-power wireless access points.

Energy efficiency
A variety of energy-saving features, including energy-detect mode, cable-length detection, and Energy-Efficient Ethernet, provide an eco-friendly and cost-effective network solution without compromising performance.

Peace of mind
All 550X Series switches are protected for the life of the product by the Cisco Limited Lifetime Hardware Warranty, including next-business-day advance replacement where available.

Data transmission



Forwarding rate



238.08 Mpps


Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



32000 entries


Number of queues



8


Number of static routes



7168


Packet buffer memory



3 MB


Static route



Yes


Switching capacity



320 Gbit/s


Design



Certification



UL (UL 60950), CSA (CSA 22.2), CE, FCC Part 15 (CFR 47)


Form factor



1U


LED indicators



Y, Yes


Number of fans



3 fan(s)


Product colour



Black


Reset button



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2/L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast Listener Discovery (MLD) snooping



v1, v2


Network



10G support



Yes


Broadcast storm control



Yes


Ethernet LAN data rates



10, 100, 1000, 10000


Head-of-line (HOL) blocking



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4094


Policy-based routing



Yes


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



IP subnet�based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, VLAN mapping, Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



196.88 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



4.93 kg


Packaging data



Cables included



AC


Quick start guide



Yes


Performance



Built-in processor



Yes


Firmware upgradeable



Yes


Flash memory



256 MB


Internal memory



512 MB


Mean time between failures (MTBF)



412309 Hour


Noise level



49.9 dB


Processor frequency



1300 MHz


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Console port



RJ-45


Power connector



DC-in jack


SFP+ module slots quantity



8


USB 2.0 ports quantity



1


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power consumption (typical)



57.7 Watt


Power supply included



Yes


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



3.79 kg


Product Depth



25.7 cm


Product Height



4.4 cm


Product Width



44 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


IPv4 & IPv6 features



Dual stack IPv4/IPv6, IPv6 Telnet, IPv6 ping, IPv6 tracert


Routing protocols



RIP-2, VRRP


Supported network protocols



IPv4, IPv6


Security



Access Control List (ACL)



Yes


Access Control List (ACL) IPv4 entries



2000


Access Control List (ACL) IPv6 entries



2000


Authentication



Web-based authentication


Authentication type



HWTACACS+, IEEE 802.1x


BPDU filtering/protection



Yes


DHCP features



DHCP Option 82, DHCP relay, DHCP server


DoS attack prevention



Yes


IP-MAC-Port binding



Yes


Loop protection



Yes


Queue scheduling algorithms



Weighted Round Robin (WRR)


Security algorithms



802.1x RADIUS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
