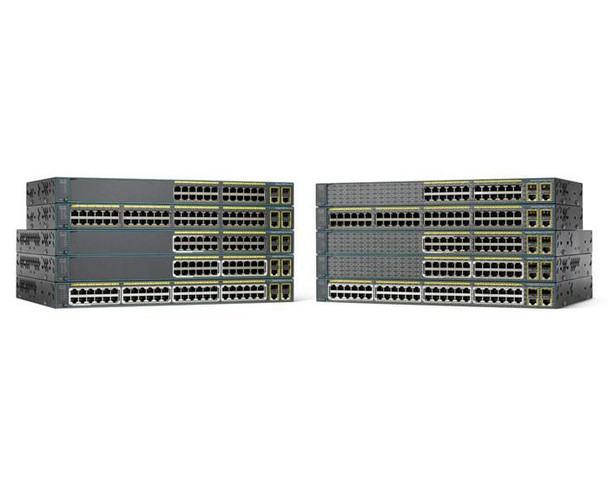

Cisco WS-C2960+24PC-L-RFB Catalyst 2960 Plus 24 10/100 WS-C2960+24PC-L-RFB

Lower TCO with Fast Ethernet Access

Deliver reliable and cost-effective network access with the Cisco Catalyst 2960-Plus Series of Fast Ethernet switches. These products provide the operational benefits of Cisco IOS Software for a range of wired access applications, including branches, conventional office workspaces, and infrastructure networks.

Cisco Catalyst 2960-Plus Switches feature:
- IEEE 802.3af-compliant Power over Ethernet (PoE)
- LAN Base or LAN Lite Cisco IOS Software feature set
- SmartOperations tools that simplify deployment and reduce the cost of network administration
- Cisco EnergyWise technology to manage energy consumed by connected devices
- An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement

Applications and Benefits

The Cisco Catalyst 2960-Plus Series provides cost-effective, enterprise class Ethernet switching for:
- Branch offices, remote sites, and retail locations
- Conventional desktop workspaces
- Building infrastructure, physical security, and other nontraditional access applications
- Benefits of the 2960-Plus include:- Robust quality of service (QoS) that prioritizes voice and critical business applications
- Flexible security features that can limit access to the network and mitigate threats
- Tools that reduce total cost of ownership through simplified operations and automation

Data transmission



Forwarding rate



16 Mpps


Jumbo frames



9018


Jumbo frames support



Yes


Throughput



6.5 Mpps


Design



LED indicators



Y, Yes


Product colour



Black


Stackable



No


Management features



MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1p, IEEE 802.1x, IEEE 802.3af


Number of VLANs



255


Rate limiting



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



-5 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Other features



Bandwidth



16 Gbit/s


Bundled software



Cisco IOS LAN Base


Power LED



Yes


Package dimensions



Gross Weight (Package, kg)



6.75 kg


Packaging data



Manual



Yes


User guide



Yes


Performance



Flash memory



64 MB


Internal memory



128 MB


Mean time between failures (MTBF)



382000 Hour


Memory type



DRAM


Noise level



43 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Combo SFP ports quantity



2


Console port



RJ-45


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



2 - 4 A


Power consumption (typical)



35.6 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Power over Ethernet (PoE) power per port



15.4 Watt


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



6.65 kg


Product Depth



33.2 cm


Product Height



4.4 cm


Product Width



45 cm


Security



MAC address filtering



Yes


Security algorithms



802.1x RADIUS


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
