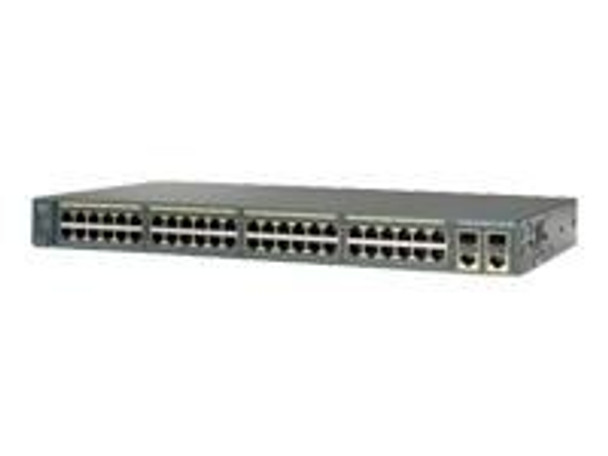

Cisco WS-C2960-48TC-S-RFB CATALYST 2960 48 10/10 PORTS WS-C2960-48TC-S-RFB

Cisco® Catalyst® 2960 Series Switches with LAN Lite software are fixed-configuration, standalone switches that provide desktop Fast Ethernet connectivity for entry-level wiring closet and small branch office networks. The Cisco Catalyst 2960 LAN Lite Series Switches simplify the migration from nonintelligent hubs and unmanaged switches to a fully scalable managed network. The LAN Lite Cisco IOS® Software provides entry-level security, quality of service (QoS), and availability capabilities while lowering the network total cost of ownership.

The Cisco Catalyst 2960 LAN Lite Switches offer:
• Dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink: each dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time.
• Scalable and secure network management.
• Baseline Network Admission Control based on users, ports, and MAC addresses.
• Easy network configuration, Cisco IOS Software updates, and troubleshooting using Cisco Network Assistant software.
• Auto-configuration using Smartports.
• Enhanced troubleshooting for link connectivity issues and cable diagnostics.
• Quality of service and support for multicast services.
• Limited lifetime hardware warranty.
• Software updates at no additional cost.

Data transmission



Jumbo frames support



Yes


MAC address table



8000 entries


Maximum data transfer rate



1 Gbit/s


Switching capacity



32 Gbit/s


Design



Certification



CE, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, FCC Part 15, UL 1950 (3), CSA 22.2 No. 950 (3)


Electromagnetic compatibility



FCC Part 15 Class A, EN 55022 Class A (CISPR22), EN 55024 (CISPR24), AS/NZS CISPR22 Class A, CE, CNS13438 Class A, MIC, GOST, China EMC


Form factor



1U


LED indicators



Y, Yes


Product colour



Grey


Rack mounting



Yes


Stackable



No


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Network



10G support



No


Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



64


Operational conditions



Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



-5 - 45 °C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-25 - 70 °C


Other features



Authentication method



RADIUS, TACACS+, SSH2


Connectivity technology



Wired


Dimensions (WxDxH)



445 x 236 x 44 mm


Expansion slots



2 ( 2 ) x SFP (mini-GBIC)


I/O ports



2x 10Base-T/100Base-TX/1000Base-T - RJ-45


Power requirements



120/230 V ( 50/60 Hz )


Power supply



45 Watt


Technical features



VLAN, auto MDI/MDI-X, IGMP


Package dimensions



Gross Weight (Package, kg)



5 kg


Performance



Flash memory



32 MB


Internal memory



64 MB


Mean time between failures (MTBF)



336983 Hour


Memory type



RAM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Combo SFP ports quantity



2


SFP/SFP+ slots quantity



2


Power



Power source



AC


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



5.7 kg


Product Depth



23.6 cm


Product Height



4.4 cm


Product Width



44.5 cm


Protocols



Data link protocols



Ethernet, Fast Ethernet


Management protocols



SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP


Switching protocols



Ethernet


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



3 Month(s)
