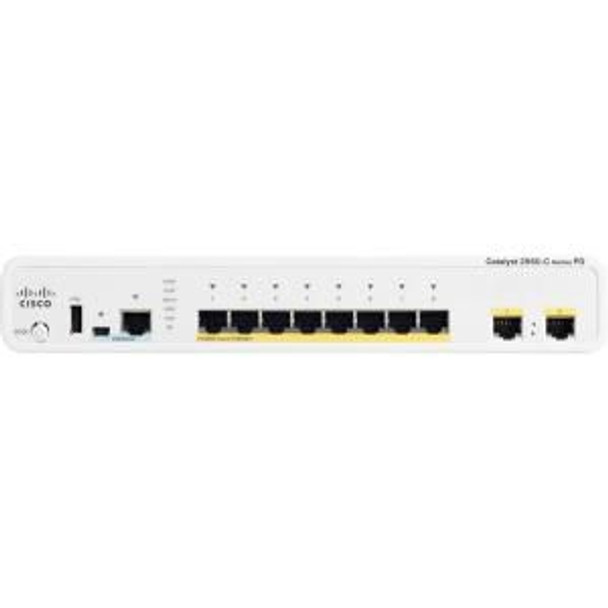

Cisco WS-C2960CG-8TC-L-RFB CATALYST 2960C SWITCH 8 GE WS-C2960CG-8TC-L-RFB

The Cisco� Catalyst� 3560-C and 2960-C Series Compact Switches are small form-factor Fast Ethernet and Gigabit Ethernet switches designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, micro branch office, classroom, cruise ship, and other wiring-constrained environments.
The Cisco Catalyst 3560-C and 2960-C series compact switches are shown in Figure 1.
Cisco Catalyst 3560-C and 2960-C Series highlights:- PoE pass-through. An innovative feature and industry first for passing power from the compact switch to end devices.
- Media Access Control Security (MACsec) hardware-based encryption.
- Power over Ethernet Plus (PoE+) up to 30 W per port.
- USB and Console port for file backup, distribution, and simplified operations.
- Fanless for silent operation.
- Enhanced limited lifetime hardware warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support.

Data transmission



Jumbo frames support



Yes


MAC address table



4000 entries


Maximum data transfer rate



13.2 Gbit/s


Supported data transfer rates



10/100/1000 Mbps


Design



Certification



FCC 15, CFR 47 A, EN 55022 (CISPR22), EN 55024 (CISPR24), CE marking, AS/NZS A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC A, KN24/KN22, ANATEL, CCC, GOST, RoHs 6, CLEI


LED indicators



Y, Yes


Safety



UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GB 4943, IEC 60825


Stackable



Yes


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



1000BASE-T, 100BASE-TX, 10BASE-T


IP routing



Yes


Link aggregation



Yes


Number of VLANs



255


Rate limiting



Yes


Spanning tree protocol



Yes


Operational conditions



Heat dissipation



60 BTU/h


Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3048 m


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



23 - 104 �F


Operating temperature (T-T)



-5 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Optical fiber



Fiber ethernet cabling technology



1000BASE?LH, 1000BASE?LX, 1000BASE?SX, 1000BASE?ZX, 100BASE-BX, 100BASE-FX, 100BASE-LX


Fiber type



Multi-mode


Wavelength



1610 nm


Other features



Bandwidth



10 Gbit/s


Connectivity technology



Wired


Dimensions (W x D x H) (imperial)



10.6 x 8.4 x 1.74 "


Dimensions (WxDxH)



269 x 213 x 44.4 mm


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Networking features



Gigabit Ethernet


Power LED



Yes


Weight (imperial)



3 lbs


Package dimensions



Gross Weight (Package, kg)



2.51 kg


Performance



Flash memory



64 MB


Internal memory



128 MB


Mean time between failures (MTBF)



542482 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



11


Fiber optic connector



LC


Power



Input current



0.15 - 0.3 A


Input voltage



100 - 240 V


Power consumption (typical)



18 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.5 kg


Protocols



Management protocols



IPv4, IPv6 MLD v1/v2, SNMP v3


Switching protocols



IPv6


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
