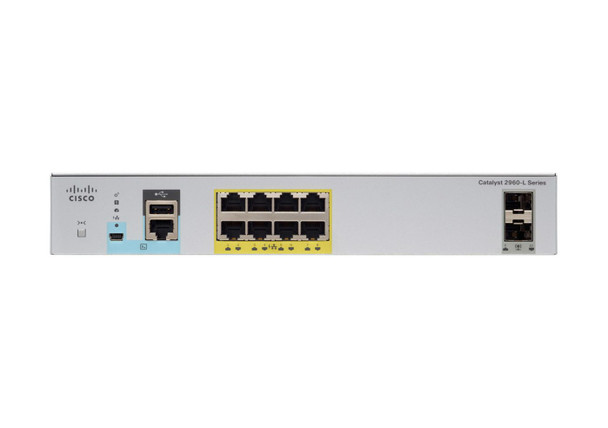

Cisco WS-C2960CX-8TC-L-RFB Switch/Cat 2960-CX 8p Data WS-C2960CX-8TC-L-RFB

The Cisco Catalyst Compact Switches easily extend your Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging.

With increased bandwidth, faster CPU, and more memory, the Cisco Catalyst 3560-CX and 2960-CX bring a multifold improvement in performance to the Cisco Catalyst Compact Switch product line. They offer many smart and innovative features for management, simplicity, and scale.

New features include:- 8 or 12 Gigabit Ethernet ports with line-rate forwarding performance
- Gigabit copper Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
- Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support with an option to upgrade to IP Services
- Cisco Catalyst Instant Access (optional with 10G) for management simplicity
- Network plug-and-play (PnP) support for automating device configuration
- Cisco TrustSec capability for role-based access security
- Innovative power management features, including Energy Efficient Ethernet and switch hibernation mode
- NetFlow Lite for application visibility at the access network

Upgrade Paths
Cisco Catalyst 3560-CX and 2960-CX Series Switches build upon the success of the 3560-C and 2960-C compact switches and offer superior performance and scale. They come in the same form factor as the older switches, and you can use them anywhere you used the older switches. Customers migrating to the new compact switches will benefit from the increased scalability and performance, innovative new features, and proven performance.

Data transmission



Forwarding rate



17.9 Mpps


Jumbo frames



9198


Jumbo frames support



Yes


Switching capacity



12 Gbit/s


Design



Certification



FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST


LED indicators



Y, Yes


Product colour



White


Rack mounting



No


Safety



UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Copper ethernet cabling technology



10GBASE-T, 100BASE-T, 1000BASE-T


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z


Number of VLANs



1023


Rate limiting



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



170.6 BTU/h


Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3048 m


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-5 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



2.8299999999999996 kg


Performance



Flash memory



128 MB


Harmonized System (HS) code



85176990


Internal memory



512 MB


Mean time between failures (MTBF)



756260 Hour


Memory type



DRAM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Combo SFP ports quantity



2


Console port



RJ-45


Gigabit Ethernet (copper) ports quantity



2


Power connector



DC-in jack


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



0.5 A


Power consumption (typical)



18.8 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.82 kg


Product Depth



23.8 cm


Product Height



4.44 cm


Product Width



26.9 cm


Protocols



Data link protocols



UDP, TFTP, IP, TCP, FTP


Management protocols



Telnet, RIP, SNMP, NTP, TACACS+, RMON, HTTP, RADIUS


Supported network protocols



ICMP, ARP, BOOTP, OSPF, DHCP


Security



Access Control List (ACL)



Yes


Authentication



MAC-based authentication, Web-based authentication


Authentication type



IEEE 802.1x


DHCP features



DHCP server, DHCP snooping


IGMP snooping



Yes


Security algorithms



802.1x RADIUS, SSH


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
