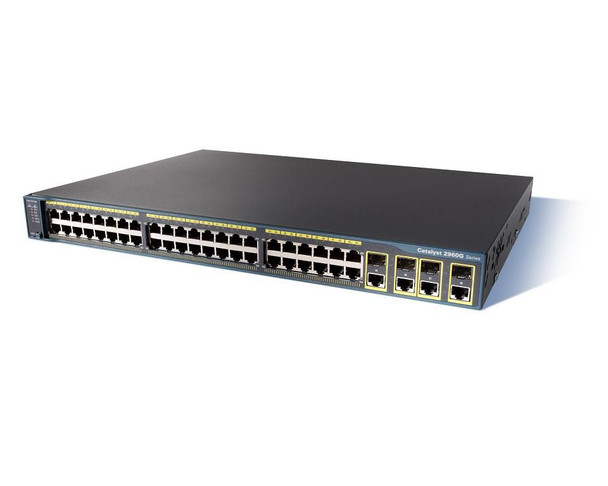

Cisco WS-C2960G-48TC-L-RFB CATALYST 2960G 48 10/100/1000 WS-C2960G-48TC-L-RFB

Cisco Systems� is introducing the intelligent Ethernet Cisco� Catalyst� 2960G-48TC Switch, a new member of the Cisco Catalyst 2960 Series of fixed-configuration standalone devices that provide desktop Fast Ethernet and Gigabit Ethernet connectivity for entry-level enterprise, midmarket, and branch office networks, helping enable enhanced LAN services. The Cisco Catalyst 2960G-48TC Switch accelerates the deployment of Gigabit to the Desktop (GTTD) by providing 48 ports of Gigabit Ethernet in one rack unit (RU) along with integrated security, including Network Admission Control (NAC), as well as advanced quality of service (QoS) and resiliency, delivering intelligent services for the network edge.

The Cisco Catalyst 2960 Series offers the following benefits:
� Intelligent features at the network edge-for example, sophisticated access control lists (ACLs) and enhanced security.

� Dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink. Each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, with one port active at a time.

� Network control and bandwidth optimization through advanced QoS, granular rate limiting, ACLs, and multicast services.

� Network security through a wide range of authentication methods, data encryption technologies, and NAC based on users, ports, and MAC addresses.

� Easy network configuration, upgrades, and troubleshooting as part of the midmarket or branch solution using the embedded device manager and Cisco Network Assistant.

� Autoconfiguration for specialized applications using Cisco Smartports.

Data transmission



MAC address table



8000 entries


Maximum data transfer rate



1 Gbit/s


Switching capacity



32 Gbit/s


Design



Certification



UL 60950-1 CAN/CSA 22.2 No. 60950-1 TUV/GS to EN 60950-1 CB to IEC 60950-1 CE NOM


Electromagnetic compatibility



FCC Part 15 Class A, EN 55022 Class A (CISPR22), EN 55024 (CISPR24), AS/NZS CISPR22 Class A, CE, CNS13438 Class A, MIC, GOST, China EMC


Product colour



Grey


Rack mounting



Yes


Stackable



No


Management features



Quality of Service (QoS) support



Yes


Switch type



Managed


Network



10G support



No


Networking standards



IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



255


Operational conditions



Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



-5 - 45 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Other features



Connectivity technology



Wired


Networking features



Ethernet/Fast Ethernet


Power requirements



100-240 VAC


Package dimensions



Gross Weight (Package, kg)



8 kg


Performance



Flash memory



32 MB


Internal memory



64 MB


Memory type



DRAM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



44


Combo SFP ports quantity



4


SFP/SFP+ slots quantity



4


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



8 kg


Security



Access Control List (ACL)



Yes


MAC address filtering



Yes


Vendor information



Brand Name


Cisco


Warranty



3 Month(s)
