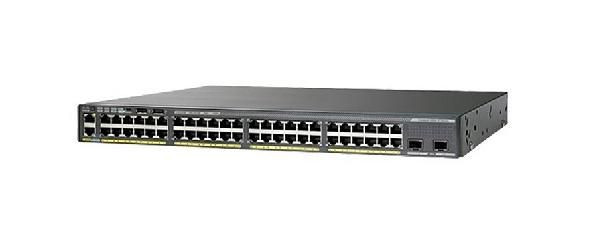

Cisco WS-C2960XR-48TD-I-RFB Catalyst 2960-Xr 48 Gige WS-C2960XR-48TD-I-RFB

Cisco� Catalyst� 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS� Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS� software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Switching capacity



216 Gbit/s


Throughput



130.9 Mpps


Design



LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Safety



UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



1023


Rate limiting



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



-5 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Other features



Power LED



Yes


Package dimensions



Gross Weight (Package, kg)



8.72 kg


Performance



Built-in processor



Yes


Flash memory



128 MB


Harmonized System (HS) code



85176990


Internal memory



512 MB


Mean time between failures (MTBF)



440880 Hour


Memory type



DRAM


Noise level



22 dB


Processor frequency



600 MHz


Processor model



AppliedMicro APM8639


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


SFP+ module slots quantity



2


USB 2.0 ports quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



90 - 264 V


Number of power supply units



1


Output power



250 Watt


Power consumption (typical)



44.8 Watt


Redundant power supply (RPS) support



Yes


Product dimensions



Net Weight (Product, kg)



8.620000000000001 kg


Product Depth



40.8 cm


Product Height



4.45 cm


Product Width



44.5 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server


IGMP snooping



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
