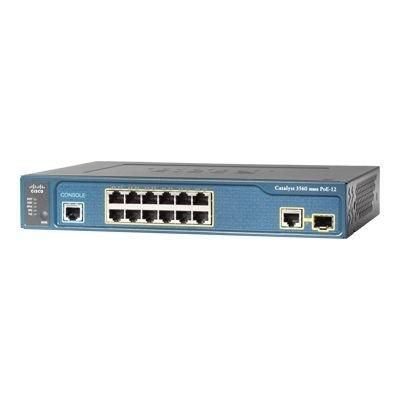

Cisco WS-C3560-12PC-S-RFB 12X10/100 POE PORTS WS-C3560-12PC-S-RFB

The Cisco� Catalyst� 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.

The Cisco Catalyst 3560 is part of a larger and more scalable family of Cisco Catalyst switches that includes the Cisco Catalyst 3560-E Series switches, the Cisco Catalyst 3750 and 3750-E Series switches with Cisco StackWise� technology, and the Cisco Catalyst 4500 and Catalyst 6500 modular switches. United by Cisco IOS� Software, the entire family offers industry-leading availability, integrated security, optimized delivery, and manageability.

Data transmission



MAC address table



12000 entries


Maximum data transfer rate



1 Gbit/s


Design



Certification



CE, FCC A, UL, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI A ITE, IEC 60950, EN55024, UL 60950 Third, CB, AS/NZ 3548 A, FCC 15, CSA C22.2 No. 60950-00, MIC


Product colour



Blue


Stackable



No


Management features



Switch type



Managed


Network



IP routing



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3U, IEEE 802.3x, IEEE 802.3z


Operational conditions



Heat dissipation



73 BTU/h


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 45 �C


Other features



Authentication method



Kerberos, RADIUS, TACACS+, SSH2


Connectivity LEDs



Y


Connectivity technology



Wired


Dimensions (WxDxH)



270 x 230 x 44 mm


Power requirements



120/230 V, 50/60 Hz


Package dimensions



Gross Weight (Package, kg)



3.2 kg


Performance



Flash memory



32 MB


Internal memory



128 MB


Mean time between failures (MTBF)



406470 Hour


Memory type



RAM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



12


Combo SFP ports quantity



1


SFP/SFP+ slots quantity



1


Power



Power consumption (typical)



22 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



3 kg


Protocols



Management protocols



SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP


Supported network protocols



RIP-1, RIP-2, SIPR


Switching protocols



Ethernet


Security



DHCP features



DHCP server, DHCP client


MAC address filtering



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
