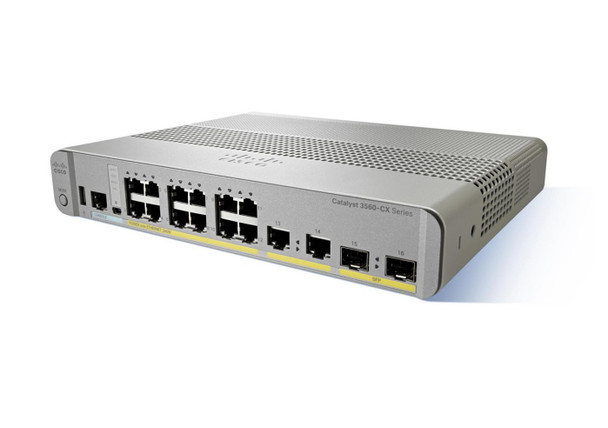

Cisco WS-C3560CX-8PC-S-RFB Switch/Cat 3560-CX 8p PoE WS-C3560CX-8PC-S-RFB

The Cisco� Catalyst� Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.

With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.

Data transmission



Forwarding rate



17.9 Mpps


Jumbo frames



9198


Jumbo frames support



Yes


Switching capacity



32 Gbit/s


Throughput



17.9 Mpps


Design



DIN rail mounting



Yes


Electromagnetic compatibility



FCC 15, CFR 47, EN 55022 (CISPR22), EN 55024 (CISPR24), CE, AS/NZS, Class A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC (MIC, GB17625.1-1998) A, KN24/KN22, ANATEL, CCC, China, GOST


Product colour



White


Rack mounting



Yes


Safety



UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch type



Managed


Multicast features



Multicast support



Yes


Network



10G support



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Full duplex



Yes


IP routing



Yes


Networking standards



IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4000


VLAN support



Yes


Operational conditions



Heat dissipation



1023.61 BTU/h


Non-operating altitude



0 - 4000 m


Operating altitude



0 - 3048 m


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-5 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Optical fiber



Fiber ethernet cabling technology



100BASE-BX, 100BASE-FX, 100BASE-LX, 1000BASE-X, 1000BASE?BX, 1000BASE?LH, 1000BASE?SX, 1000BASE?ZX


Fiber type



Multi-mode


Package dimensions



Gross Weight (Package, kg)



3.46 kg


Performance



Flash memory



128 MB


Harmonized System (HS) code



85176990


Internal memory



512 MB


Mean time between failures (MTBF)



569530 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



2


SFP module slots quantity



2


Power



AC input voltage



100 - 240 V


Input current



1.5 - 3.25 A


Power consumption (typical)



24.4 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



8


Total Power over Ethernet (PoE) budget



240 Watt


Product dimensions



Net Weight (Product, kg)



3.36 kg


Product Depth



23.8 cm


Product Height



4.44 cm


Product Width



26.9 cm


Security



Access Control List (ACL)



Yes


Authentication



MAC-based authentication


DHCP features



DHCP server, DHCP client


Security algorithms



802.1x RADIUS, SNMP


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
