Cisco

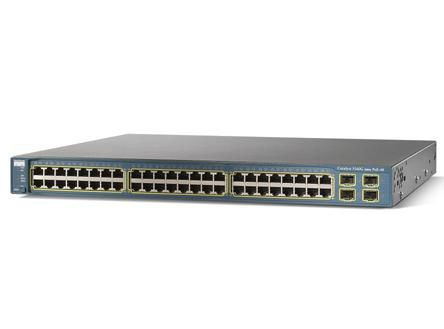

Cisco WS-C3560G-48TS-S-RFB CATALYST 3560 48PT 10/100/1000 WS-C3560G-48TS-S-RFB
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- WS-C3560G-48TS-S-RFB
- Condition:
- Refurbished
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Cisco® Catalyst® 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.
Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.
Features:- 48 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
- 1RU fixed-configuration, multilayer switch
- Enterprise-class intelligent services delivered to the network edge
- Standard Multilayer Software Image (SMI) installed
- Basic RIP and static routing, upgradeable to full dynamic IP routing
Data transmission
Jumbo frames support
Yes
MAC address table
12000 entries
Maximum data transfer rate
1 Gbit/s
Store-and-forward
Yes
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
32 Gbit/s
Design
Certification
FCC Part 15 A, EN 55022: 1998 (CISPR22), EN 55024: 1998 (CISPR24), VCCI A, AS/NZS 3548 A, CE, CNS 13438 A, MIC
Product colour
Turquoise
Safety
UL 60950, CAN/CSA C22.2, TUV/GS to EN 60950:2000, CB to IEC 60950, NOM-019-SCFI, CE
Stackable
No
Management features
MIB support
Y
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
10G support
No
Broadcast storm control
Yes
Copper ethernet cabling technology
1000Base-T, 1000BASE-T, 100Base-TX, 10Base-T
Full duplex
Yes
IP routing
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Yes
Operational conditions
Operating altitude
0 - 3049 m
Operating relative humidity (H-H)
10 - 85 %
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 70 °C
Other features
Acoustic pressure emissions
48 dB
Connectivity LEDs
Y
Connectivity technology
Wired
Dimensions (WxDxH)
445 x 409 x 44 mm
Management platform
Cisco IOS CLI, Cisco Network Assistant, SAA
Packet transfer speed
38.7 Mpps
Power requirements
100-240 VAC, 3.0-1.5A, 50-60Hz
Package dimensions
Gross Weight (Package, kg)
9.35 kg
Performance
Flash memory
32 MB
Internal memory
128 MB
Mean time between failures (MTBF)
173400 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Gigabit Ethernet (copper) ports quantity
48
Power connector
DC-in jack
SFP module slots quantity
4
SFP/SFP+ slots quantity
4
Power
Power consumption (typical)
160 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
9.35 kg
Protocols
Management protocols
IGMP, RMON, SNMP, Telnet
Security
DHCP features
DHCP server
IGMP snooping
Yes
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
View AllClose
Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.
Features:- 48 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
- 1RU fixed-configuration, multilayer switch
- Enterprise-class intelligent services delivered to the network edge
- Standard Multilayer Software Image (SMI) installed
- Basic RIP and static routing, upgradeable to full dynamic IP routing
Data transmission
Jumbo frames support
Yes
MAC address table
12000 entries
Maximum data transfer rate
1 Gbit/s
Store-and-forward
Yes
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
32 Gbit/s
Design
Certification
FCC Part 15 A, EN 55022: 1998 (CISPR22), EN 55024: 1998 (CISPR24), VCCI A, AS/NZS 3548 A, CE, CNS 13438 A, MIC
Product colour
Turquoise
Safety
UL 60950, CAN/CSA C22.2, TUV/GS to EN 60950:2000, CB to IEC 60950, NOM-019-SCFI, CE
Stackable
No
Management features
MIB support
Y
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
10G support
No
Broadcast storm control
Yes
Copper ethernet cabling technology
1000Base-T, 1000BASE-T, 100Base-TX, 10Base-T
Full duplex
Yes
IP routing
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Yes
Operational conditions
Operating altitude
0 - 3049 m
Operating relative humidity (H-H)
10 - 85 %
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 70 °C
Other features
Acoustic pressure emissions
48 dB
Connectivity LEDs
Y
Connectivity technology
Wired
Dimensions (WxDxH)
445 x 409 x 44 mm
Management platform
Cisco IOS CLI, Cisco Network Assistant, SAA
Packet transfer speed
38.7 Mpps
Power requirements
100-240 VAC, 3.0-1.5A, 50-60Hz
Package dimensions
Gross Weight (Package, kg)
9.35 kg
Performance
Flash memory
32 MB
Internal memory
128 MB
Mean time between failures (MTBF)
173400 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Gigabit Ethernet (copper) ports quantity
48
Power connector
DC-in jack
SFP module slots quantity
4
SFP/SFP+ slots quantity
4
Power
Power consumption (typical)
160 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
9.35 kg
Protocols
Management protocols
IGMP, RMON, SNMP, Telnet
Security
DHCP features
DHCP server
IGMP snooping
Yes
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
