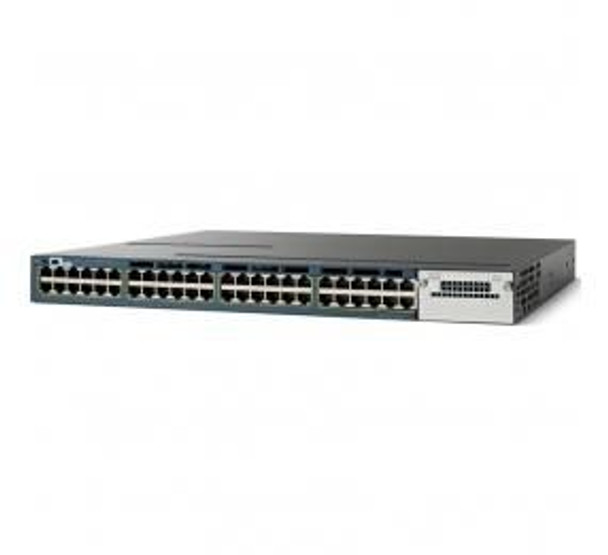

Cisco WS-C3560X-48T-E-RFB Catalyst 3560X 48 Port WS-C3560X-48T-E-RFB

Cisco is pleased to introduce the new Cisco Catalyst 3750-X and 3560-X Series Switches. The Cisco Catalyst 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features.

The Cisco Catalyst 3750-X Series with StackWise Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

Data transmission



Jumbo frames support



Yes


MAC address table



12000 entries


Maximum data transfer rate



1 Gbit/s


Supported data transfer rates



10/100/1000 Mbps


Switching capacity



160 Gbit/s


Design



Certification



FCC Part 15 (CFR 47) A, ICES-003 A, EN 55022 A, CISPR 22 A, AS/NZS 3548 A, BSMI A, VCCI A, EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1


Form factor



1U


LED indicators



Y, Yes


Product colour



Turquoise


Rack mounting



Yes


Stackable



No


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2+


Switch type



Managed


Web-based management



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1x, IEEE 802.3at


Spanning tree protocol



Yes


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-5 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Other features



Connectivity technology



Wired


Dimensions (WxDxH)



445 x 460 x 44.5 mm


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Power LED



Yes


Power supply



350 Watt


Power supply type



AC


Package dimensions



Gross Weight (Package, kg)



9.8 kg


Performance



Flash memory



128 MB


Internal memory



256 MB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP/SFP+ slots quantity



2


Power



Input voltage



100 - 240 V


Power consumption (typical)



350 Watt


Power source



AC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



9.700000000000001 kg


Product Depth



44.5 cm


Product Height



4.45 cm


Product Width



46 cm


Protocols



Data link protocols



Ethernet, Fast Ethernet, Gigabit Ethernet


Management protocols



SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP


Security



DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


SSH/SSL support



Yes


Static port security



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
