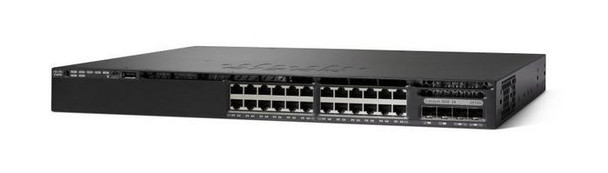

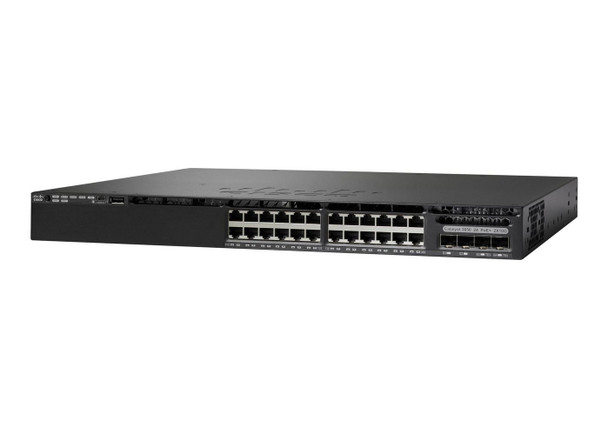

Cisco WS-C3650-24PS-S-RFB CATALYST 3650 24 PORT WS-C3650-24PS-S-RFB

The Cisco Catalyst� 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise�-160, and takes advantage of the new Cisco� Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

Data transmission



Jumbo frames support



Yes


MAC address table



32000 entries


Switching capacity



88 Gbit/s


Design



Form factor



1U


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Safety



UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Full duplex



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4094


Rate limiting



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 5000 m


Operating altitude



0 - 1500 m


Operating relative humidity (H-H)



5 - 96 %


Operating temperature (T-T)



-5 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Bandwidth



160 Gbit/s


Package dimensions



Gross Weight (Package, kg)



9.68 kg


Performance



Flash memory



2000 MB


Internal memory



4096 MB


Mean time between failures (MTBF)



528280 Hour


Memory type



DRAM


Noise level



48 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power consumption (typical)



64.18 Watt


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



24


Total Power over Ethernet (PoE) budget



390 Watt


Product dimensions



Net Weight (Product, kg)



9 kg


Product Depth



44.8 cm


Product Height



4.4 cm


Product Width



44.5 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server


IGMP snooping



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
