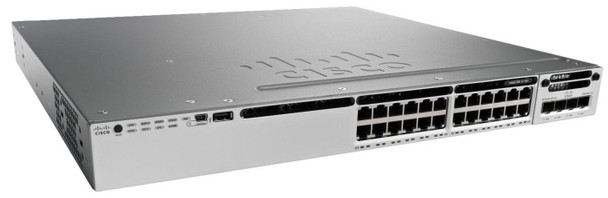

Cisco WS-C3850-24P-L-RFB Catalyst 3850 24 Port Po WS-C3850-24P-L-RFB

Catalyst 3850 Enables Unified Access

Cisco Unified Access is the convergence of the wired and wireless networks into one physical infrastructure with greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.

Best-in-Class Stackable Access Switch
The Cisco Catalyst 3850 Switch currently offers the industry's highest 480 Gbps stacking bandwidth to meet network demand, including gigabit desktop and 802.11ac wireless. The switch delivers advanced capabilities such as a high-performance 24/48 port GE switch, 480 G stacking, Power over Ethernet Plus, StackPower and Flexible NetFlow on all ports.

Converged Wired and Wireless Access
The Cisco Catalyst 3850 Switch brings Cisco IOS excellence to wireless by extending wired infrastructure features, resiliency, granular QoS, and scalability. It provides built-in wireless controller capabilities with 40 G wireless throughput, support for 50 access points and 2000 wireless clients per switch or stack, and support for 802.11ac.

Distributed Intelligent Services
The Cisco Catalyst 3850 Switch delivers common intelligent services across wired and wireless for security and policy, application visibility and control, network resiliency, smart operations, and more. The switch can enable multi-level QoS based on granular information such as SSID, client, radio, application, and fair share policies for wireless.

Foundation for Cisco Open Network Environment
The heart of Cisco Catalyst 3850 is the new ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides a foundation for converged APIs across wired and wireless, software-defined networking (SDN) support, and Cisco One Platform Kit (OnePK).

Data transmission



Jumbo frames support



Yes


MAC address table



32000 entries


Switching capacity



88 Gbit/s


Design



Certification



RoHS


Compatible products



Aironet 3600, 3500, 2600, 1600, 1260, 1140, 1040


Electromagnetic compatibility



47CFR, AS/NZS CISPR22 2, CISPR22, EN55022, ICES003, EN61000-3-2, KCC, EN55024, KN24


LED indicators



Y, Yes


Product colour



Black, Grey


Safety



UL 60950-1, CAN/CSA-C22.2, EN 60950-1, IEC 60950-1, GOST, NOM


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch type



Managed


Multicast features



Multicast support



Yes


Network



IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.11ac, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4000


Rate limiting



Yes


Routing entries



24000


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating temperature (T-T)



-5 - 45 �C


Relative humidity



10 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Other features



Bandwidth



480 Gbit/s


Power LED



Yes


Power supply



715 Watt


Power supply type



AC / PoE+


Technical features



PoE 435W


Package dimensions



Gross Weight (Package, kg)



10.46 kg


Packaging data



Manual



Yes


User guide



Yes


Performance



Flash memory



2048 MB


Harmonized System (HS) code



85176990


Internal memory



4096 MB


Mean time between failures (MTBF)



269450 Hour


Media types supported



100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM/CWDM SFP; 0GBASE-SR, LR, LRM, CX1 (v02 +) SFP+


Memory type



DRAM


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Gigabit Ethernet (copper) ports quantity



24


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power source



AC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Product dimensions



Net Weight (Product, kg)



10.360000000000001 kg


Product Depth



4.5 cm


Product Height



44.5 cm


Product Width



44.5 cm


Protocols



Management protocols



SNMP v1, SNMP v2c, SNMP v3


Security



Access Control List (ACL)



Yes


IGMP snooping



Yes


Security algorithms



802.1x RADIUS


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
