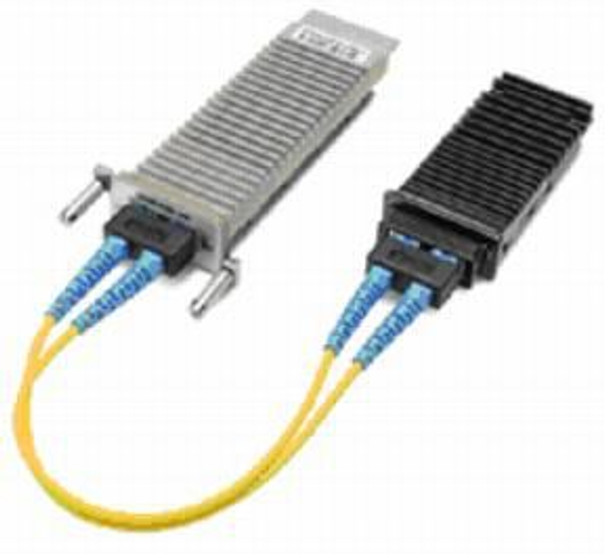

Cisco X2-10GB-LR-RFB 10GBASE-LR X2 MODULE X2-10GB-LR-RFB

The Cisco� 10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Main features of Cisco 10GBASE X2 modules include:- Support 10GBASE Ethernet.
- Hot-swappable input/output device plugs into an Ethernet X2 port of a Cisco switch or router to link the port with the network.
- Provides flexibility of interface choice.
- Supports "pay-as-you-populate" model.
- Supports the Cisco quality identification (ID) feature that enables a Cisco switch or router to identify whether the module is certified and tested by Cisco.
- Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link.

Cisco X2-10GB-LR
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).

Design



Compliance industry standards



IEEE 802.3ae


Management features



Hot-swap



Yes


Network



Cabling technology



10GBASE-LR


Maximum data transfer rate



10000 Mbit/s


Operational conditions



Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Dimensions (WxDxH)



36 x 91 x 13.46 mm


Fiber type



SMF


Interface



X2


Operating temperature (T-T)



32 - 158 �F


Package dimensions



Gross Weight (Package, kg)



0.25 kg


Performance



Maximum transfer distance



10000 m


Wavelength



1310 nm


Ports & interfaces



Connectivity technology



Wired


Product dimensions



Net Weight (Product, kg)



0.24 kg


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
