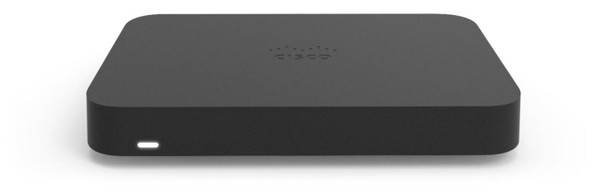

Cisco Z3-HW Meraki Z3 Hardware Firewall Z3-HW

The Cisco Meraki Z-Series teleworker gateway is an enterprise class firewall, VPN gateway and router. Each model offers five gigabit ethernet ports and wireless for connectivity. Each model is designed to securely extend the power of Meraki cloud managed networking to employees, IT staff, and executives working from home.
Using Meraki�s proven and highly scalable Auto VPN technology, administrators can deploy network services including VoIP and remote endpoints with automatic, zero-touch provisioning. Additionally the Z series provides secure wired and wireless access, and increases end-user productivity through Layer 7 traffic shaping.
All models feature a high-performance stateful firewall, support for VLANs, inter-VLAN routing, and isolation to segregate corporate data from recreational traffic. The Z3 offers the latest in wireless performance with 802.11ac Wave 2 technology with MU-MIMO support to provide reliable and high speed network access for most demanding business applications and latest devices.
Z-Series and Meraki Cloud Management: A Powerful Combo All Meraki devices are managed via the Meraki cloud, with an intuitive browser-based interface. Since the Z series is selfconfiguring and managed over the web, you can repidly deploy at remote locations without any assistance from end-users.
Meraki Cloud services monitor all devices 24x7 and deliver realtime alerts if any device encounters a problem. Remote diagnostics tools enable real-time troubleshooting through any web browser. New features and enhancements are delivered seamlessly over the web, so you never have to manually download software updates or worry about missing security patches.

Data transmission



Firewall throughput



100 Mbit/s


VPN throughput



50 Mbit/s


Logistics data



Harmonized System (HS) code



85176990


Management features



LED indicators



Y, Yes


Web-based management



Yes


Network



Networking standards



IEEE 802.11ac, IEEE 802.1x, IEEE 802.3af


Number of users



5 user(s)


Wi-Fi



Yes


Wi-Fi data rate (max)



1300 Mbit/s


Wi-Fi standards



Wi-Fi 5 (802.11ac)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



4.69 kg


Ports & interfaces



Connectivity technology



Wired


Gigabit Ethernet (copper) ports quantity



4


USB 2.0 ports quantity



1


WAN connection



Ethernet (RJ-45), Mobile network (USB)


Power



Number of power supply units



1


Power supply



50 Watt


Product dimensions



Net Weight (Product, kg)



3.61 kg


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



173.4 x 112 x 26.3 mm
