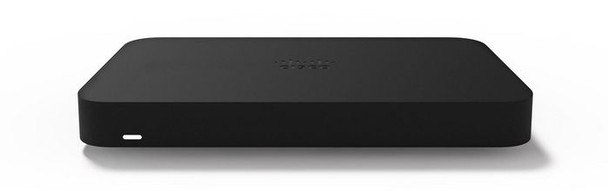

Cisco Z3C-HW-WW Meraki Z3C Hardware Firewall Z3C-HW-WW

Fast, Reliable Connectivity for the Modern Teleworker
Hardware
- 802.11ac Wave 2 WiFi for fast and reliable connectivity
- 4 wired ports with one PoE-powered port, ideal for phones
- 1 GbE WAN port, 4 GbE LAN ports
- 3G / 4G failover via CAT 3 LTE or USB modem
- Sleek, low profile design with optional desk stand

Wireless
- Dual-band 802.11ac Wave 2 radios
- 2x2 MU-MIMO, up to 1.3 Gbps data rate
- Supports up to 4 SSIDs

Traffic shaping and application management
- Layer 7 application visibility and traffic shaping
- Application prioritization

Teleworker gateway services
- Stateful firewall separates corporate and personal traffic
- Extend VoIP phones over WAN
- 802.1x support for wired port authentication
- Auto VPN� self-configuring site-to-site VPN
- Access corporate HQ via site-to-site VPN

Cloud-based centralized management
- Managed centrally over the Web
- Classifies applications, users and devices
- Zero-touch, self-provisioning deployments

Data transmission



Firewall throughput



100 Mbit/s


VoIP



Yes


VPN throughput



50 Mbit/s


Logistics data



Harmonized System (HS) code



85176990


Management features



LED indicators



Y, Yes


Web-based management



Yes


Network



Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af


Number of users



5 user(s)


Point-to-point protocol over Ethernet (PPPoE)



Yes


Wi-Fi



Yes


Wi-Fi band



Dual-band (2.4 GHz / 5 GHz)


Wi-Fi data rate (max)



1300 Mbit/s


Wi-Fi standards



802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



4.69 kg


Performance



Antenna gain level (max)



4 dBi


Antennas quantity



4


Certification



FCC (US), IC, C-Tick, RoHS


Syslog



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN data rates



10, 100, 1000


Gigabit Ethernet (copper) ports quantity



4


USB 2.0 ports quantity



1


WAN connection



Ethernet (RJ-45), Mobile network (USB)


Power



Input current



0.92 A


Number of power supply units



1


Power supply



50 Watt


Product dimensions



Net Weight (Product, kg)



3.61 kg


Security



Security algorithms



IPSec, SSID, WPA2-PSK


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



200 x 112 x 26 mm
