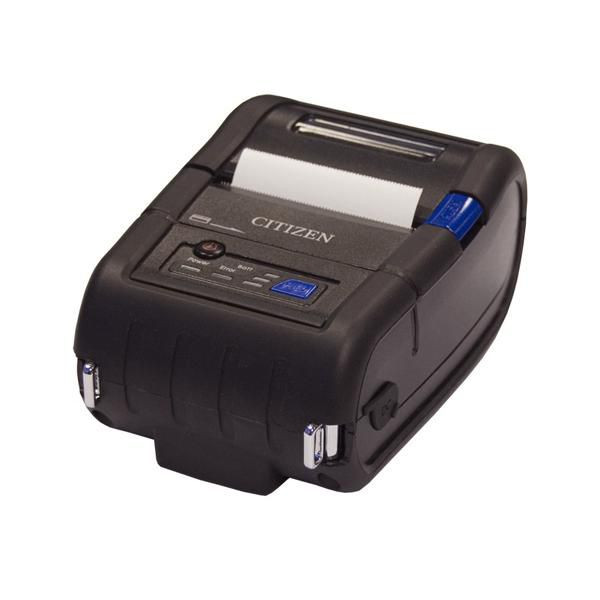

Citizen CMP20IIBUXCX CMP-20II. 203dpi. BT. iOS CMP20IIBUXCX

The CMP-20II mobile printer provides compact and robust printing virtually anywhere, with both Bluetooth and WiFi connectivity. Quick and simple to use, the CPM-20II is designed to save you time when printing 2 inch wide mobile receipts. Fast operation and reliable printing is assured, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.

Design



Product colour



Black


Features



International Protection (IP) code



IP42


Page description languages



CPCL-native, ESC/POS


Product colour



Black


Logistics data



Harmonized System (HS) code



84433210


Network



Ethernet LAN



No


Wi-Fi



No


Operational conditions



Operating relative humidity (H-H)



35 - 95 %


Operating temperature (T-T)



-10 - 50 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-20 - 60 �C


Other features



International Protection (IP) code



IP42


Rechargeable



Yes


Package dimensions



Depth (package,cm)



8 cm


Gross Weight (Package, kg)



0.8 kg


Height (package,cm)



12 cm


Width (package,cm)



15 cm


Packaging content



Cables included



Serial


Quick start guide



Yes


Packaging data



Cables included



Serial


Paper handling



Maximum printing width



4.8 cm


Maximum roll diameter



4.8 cm


Printing media thickness



65 �m


Supported paper width



5.8 cm


Performance



Maximum resolution



203 x 203 DPI


Print speed



80 mm/sec


Print technology



Thermal


Standard printer languages



CPCL-native, ESC/POS


Type



Mobile printer


Ports & interfaces



Bluetooth



Yes


Connectivity technology



Wired & Wireless


Serial interface



Yes


Serial ports quantity



1


Standard interfaces



Bluetooth, Serial, USB


USB 2.0 ports quantity



1


USB connector



Mini-USB Type-B


USB connector type



Mini-USB B


USB port



Yes


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Battery life (max)



1.5 Hour


Battery recharge time



2 Hour


Battery technology



Lithium-Ion (Li-Ion)


Battery voltage



7.4 V


Power consumption



1200 mA


Power source type



Battery


Rechargeable



Yes


Printing



Maximum resolution



203 x 203 DPI


Print speed



80 mm/sec


Print technology



Thermal


Type



Mobile printer


Product dimensions



Net Weight (Product, kg)



0.42 kg


Product Depth



5.8 cm


Product Height



9.6 cm


Product Width



13.6 cm


Software



Mobile operating systems supported



Android, Windows Mobile 5, Windows Mobile 6, iOS


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


System requirements



Mobile operating systems supported



Android, Windows Mobile 5, Windows Mobile 6, iOS


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Harmonized System (HS) code



84433210


Vendor information



Brand Name


Citizen


Warranty



2 Year(s)
